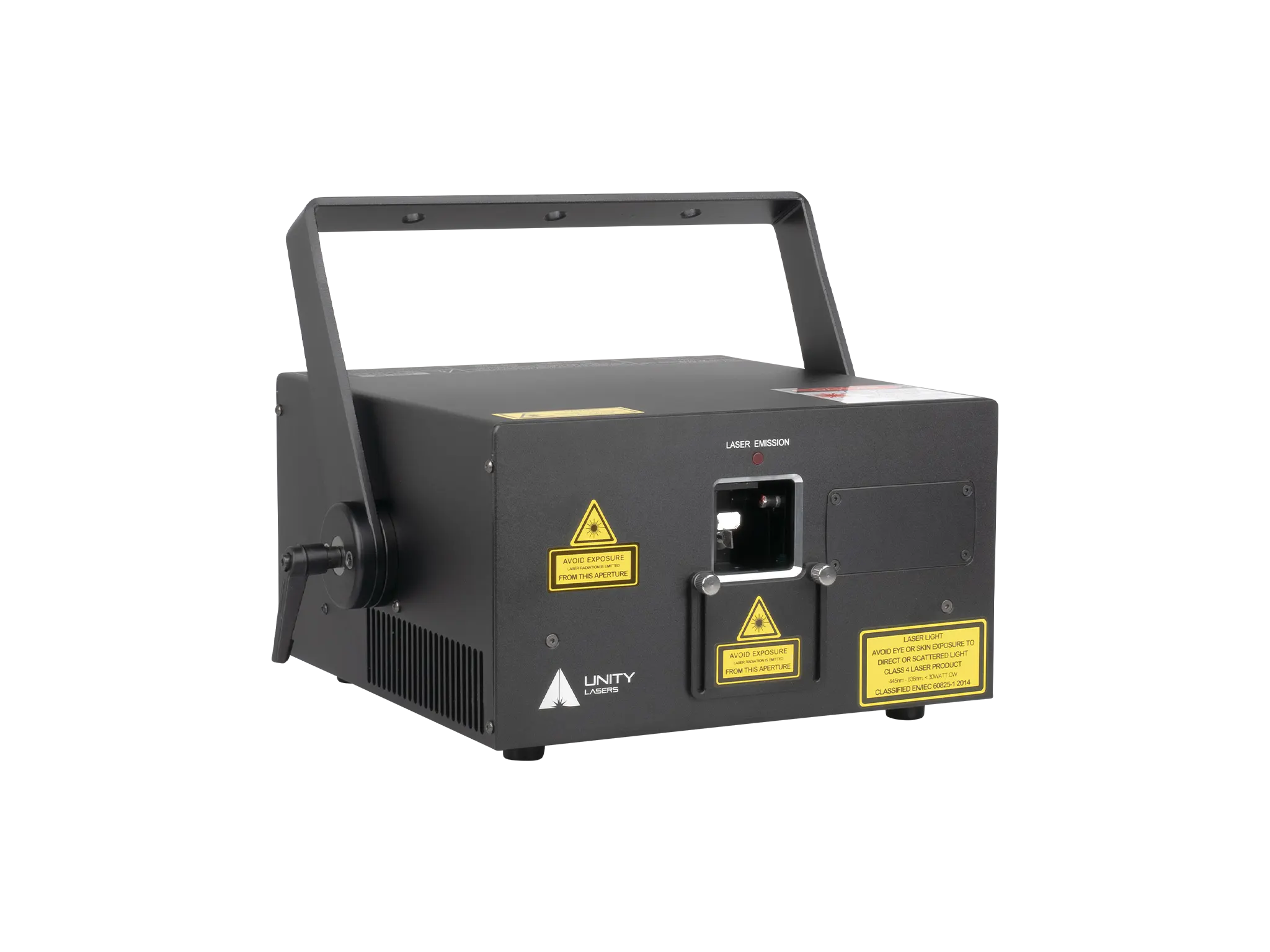

RAW ILDA

$1,247.00

Model: 5W

5W 10W

Quantity:

Purchase while supplies last! We only have 4 units of each model in stock.

In stock

Product video
Specifications
What's in the box

Product Video

Specifications

Product Name:

Raw 5

Raw 10

Type Of Laser:

full-colour, semiconductor diode laser system

Guaranteed Optical Output:

>5,000mW

>10W

Suitable For:

Medium to large sized indoor/outdoor laser shows and laser graphic displays

Control Signal:

ILDA - We recommend Pangolin FB3QS and QuickShow

Scanning System:

25,000 points per second @ 8°

30,000 points per second @ 8°

Scan Angle:

50°

Safety:

fully complies with the latest EN 60825-1, and FDA regulations

Weight:

8kg

12kg

Package Includes:

Carton box, power cord, 10m ILDA signal cable, E-STOP box with 10m cable, set of 4 safety keys, remote interlock bypass, user guide.

R | G | B [mW]:

1200 | 1000 | 2800

2700 | 2700 | 4800

Beam Size [mm]:

5 x 3

Beam Divergence:

<1.1mrad [full angle]

Modulation:

Analog 50kHz

Power Requirements:

100-230V/50Hz

Consumption:

max. 150W

max. 350W

Operation Temperature:

10-40 °C

Ingress Rating:

IP 20

System Features:

All the adjustments such as power output of each colour, X & Y axes invert, X & Y size and position, etc. Scanning system protection, daisy chain of emergency STOP signal for multiple system "one-hit" operation.

Laser Safety Features:

Keyed interlock, emission delay, magnetic interlock, scan-fail safety, mechanical shutter, adjustable aperture masking plate.

Notice:

*Due to Advanced Optical Correction technology used in our laser systems the optical power output of each laser colour within the system may slightly differ from the specification of respective laser module(s) installed. This does not affect the total guaranteed power output.

Dimensions [mm]:

Length: 252 Width: 247 Height: 148

Length: 340 Width: 247 Height: 148
