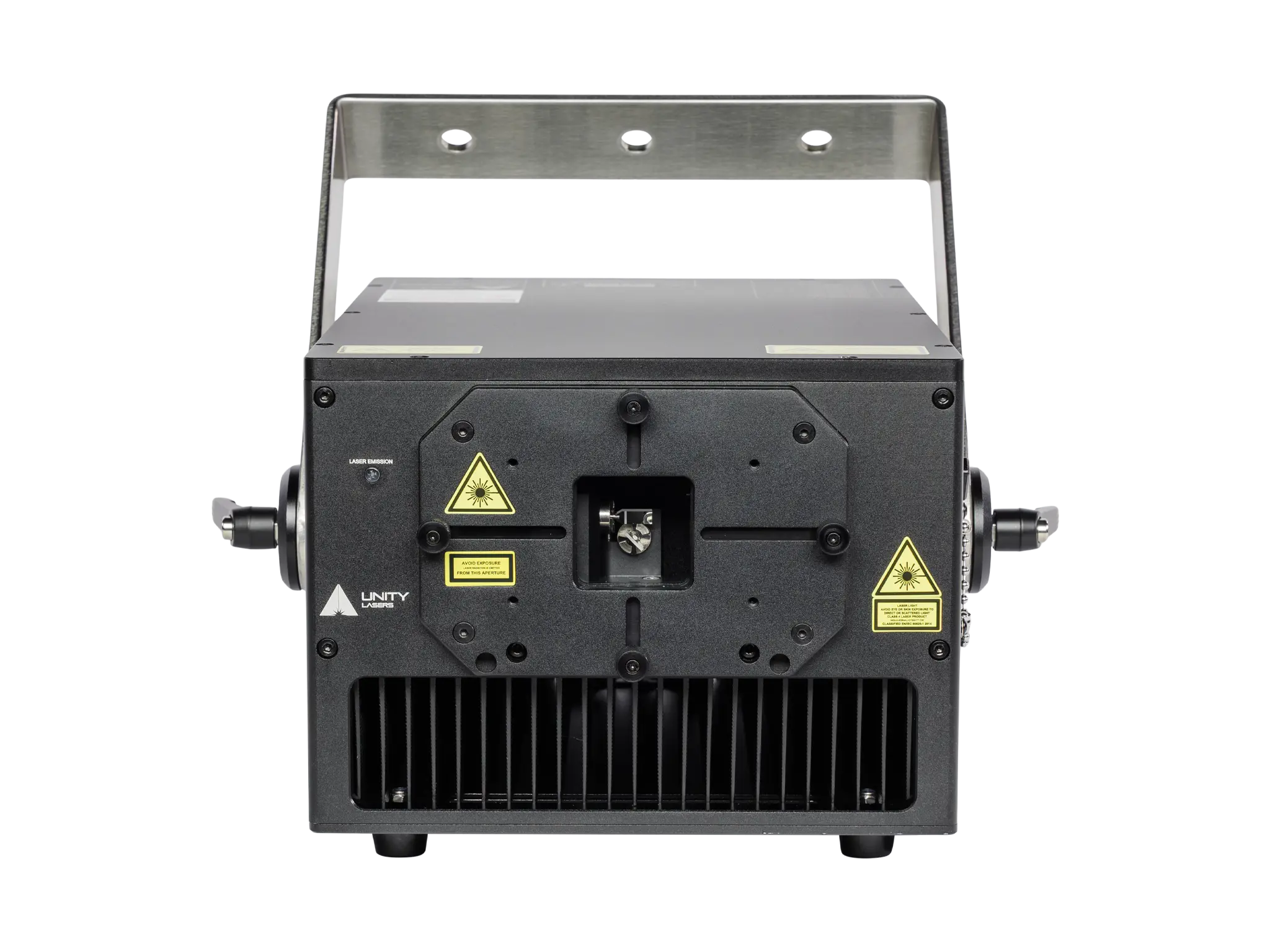

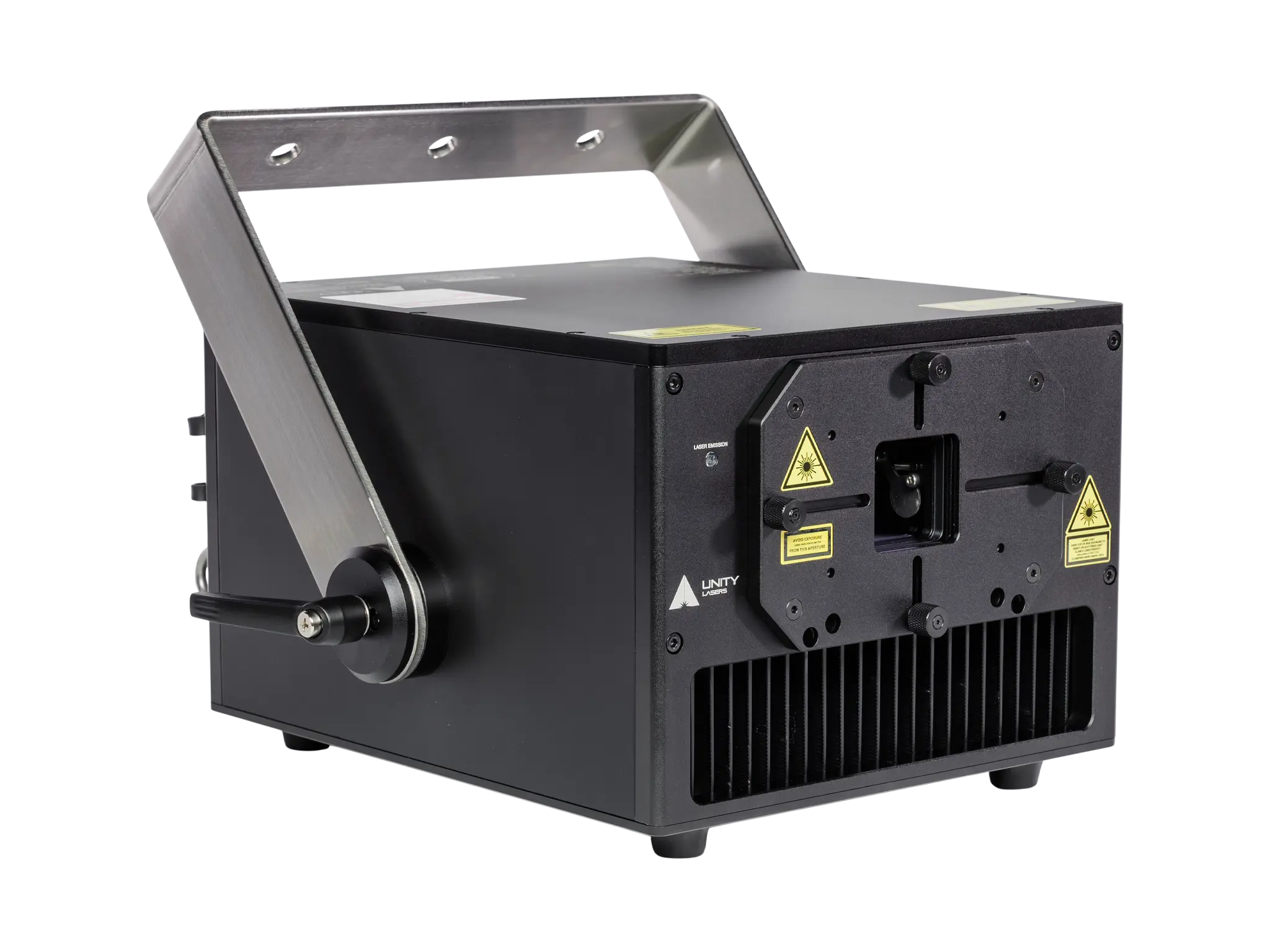

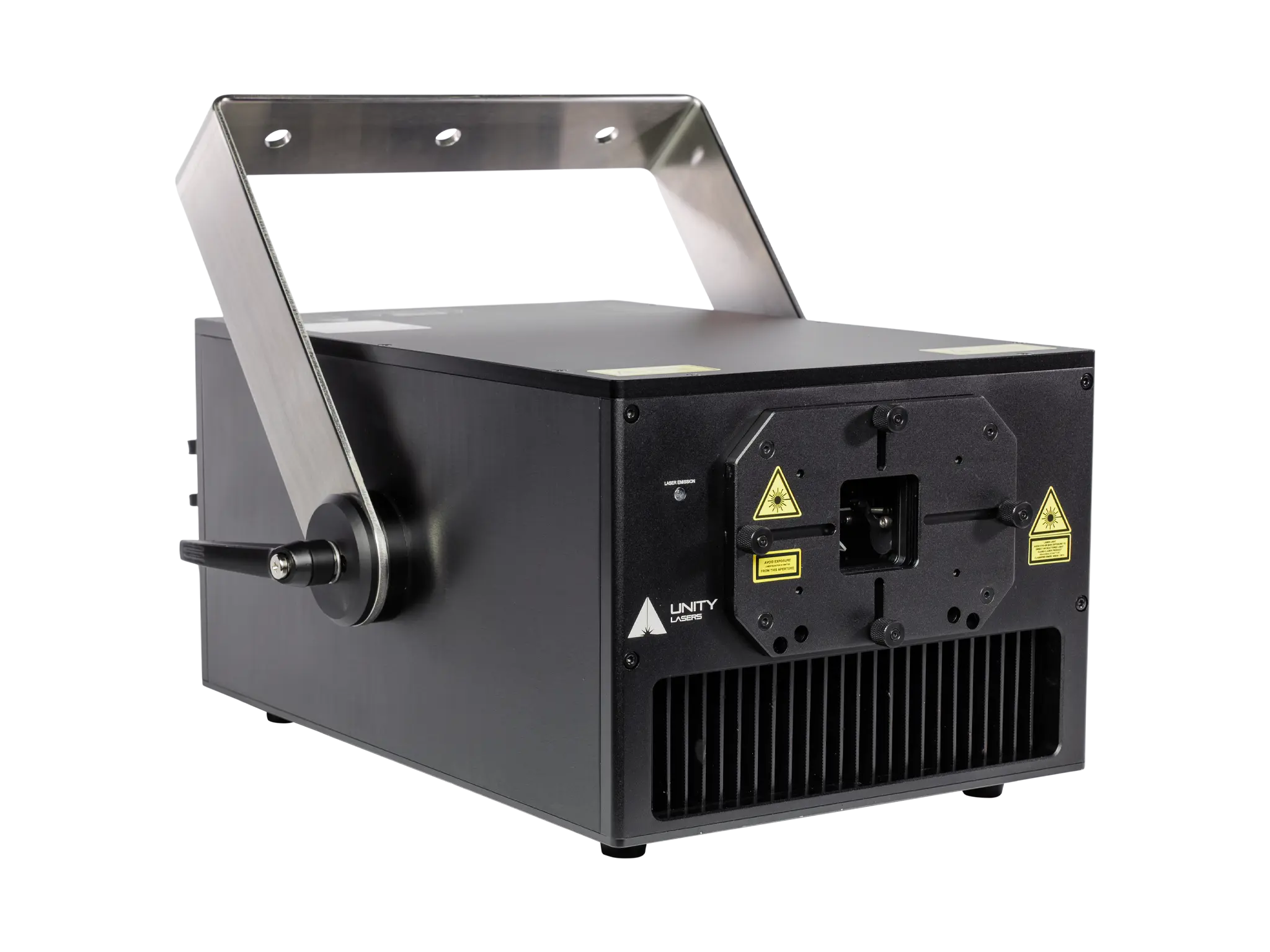

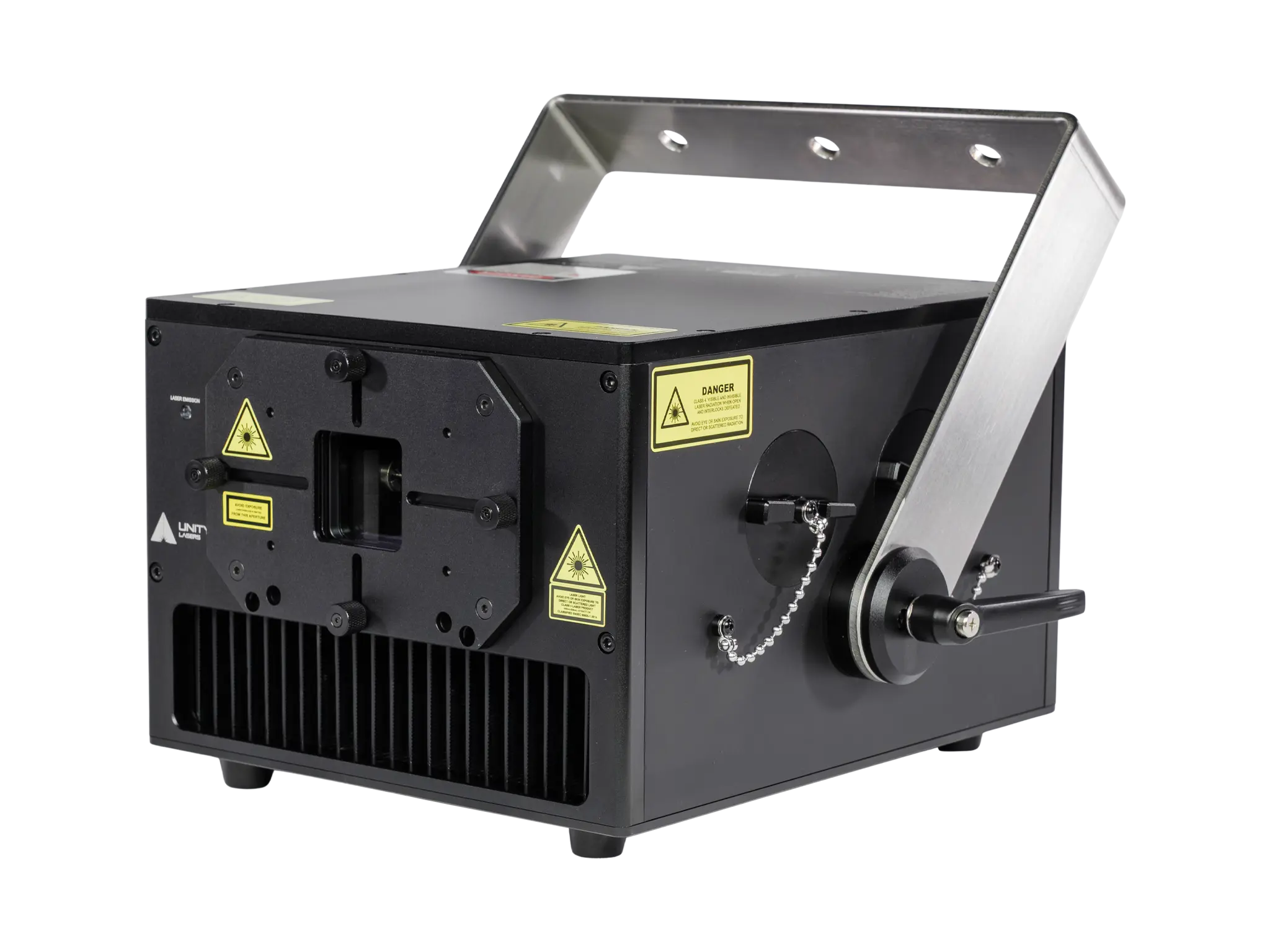

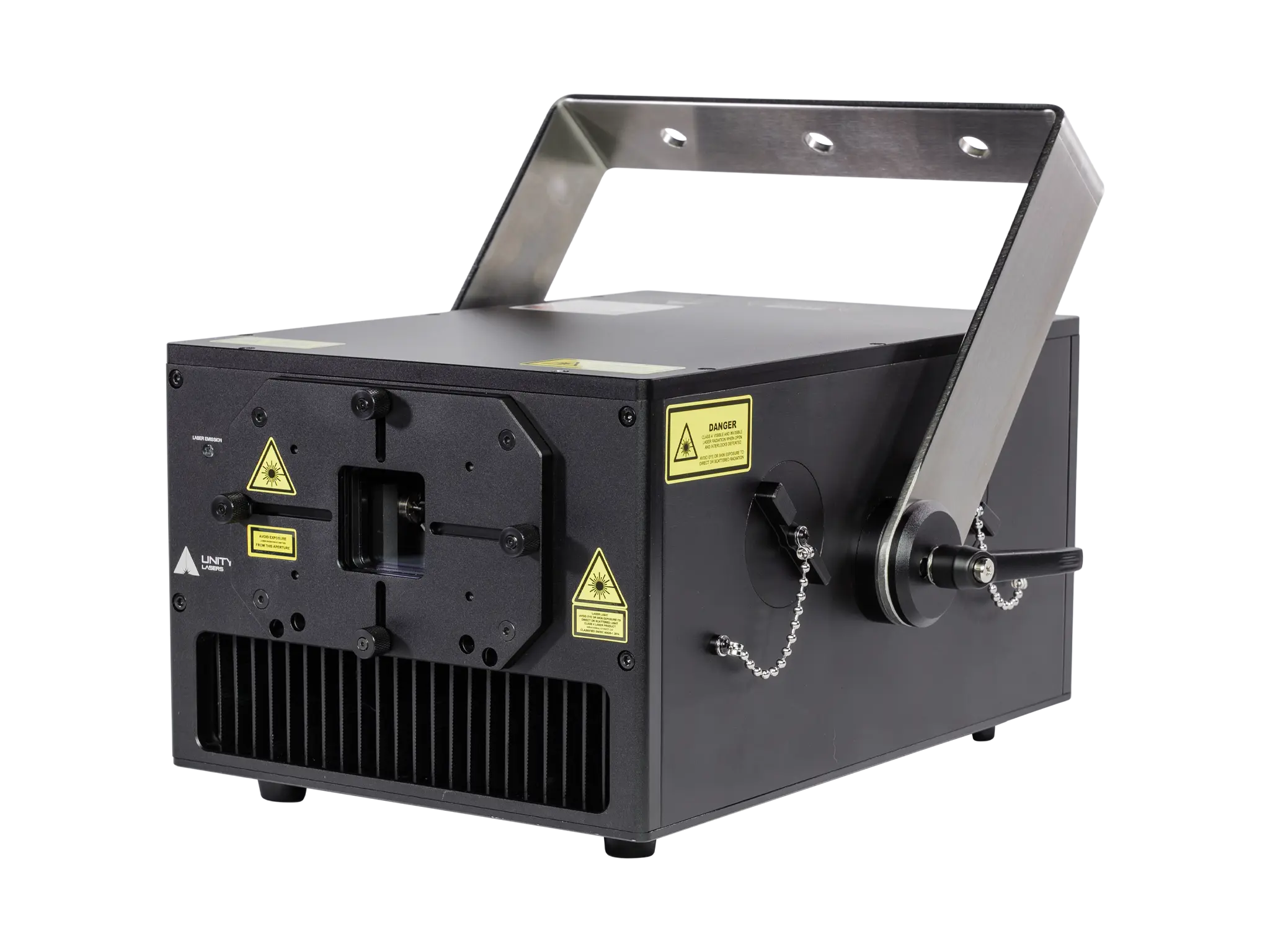

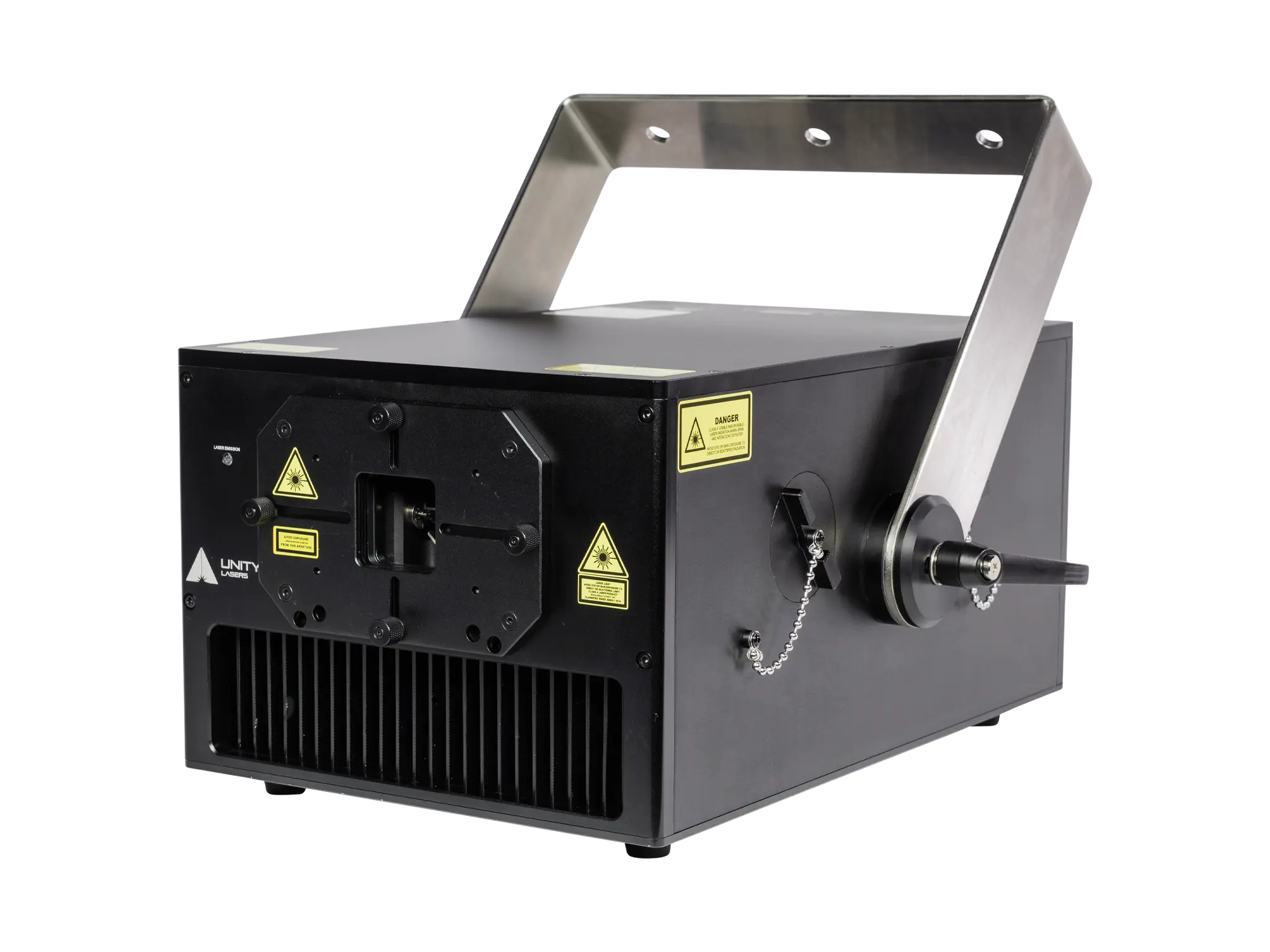

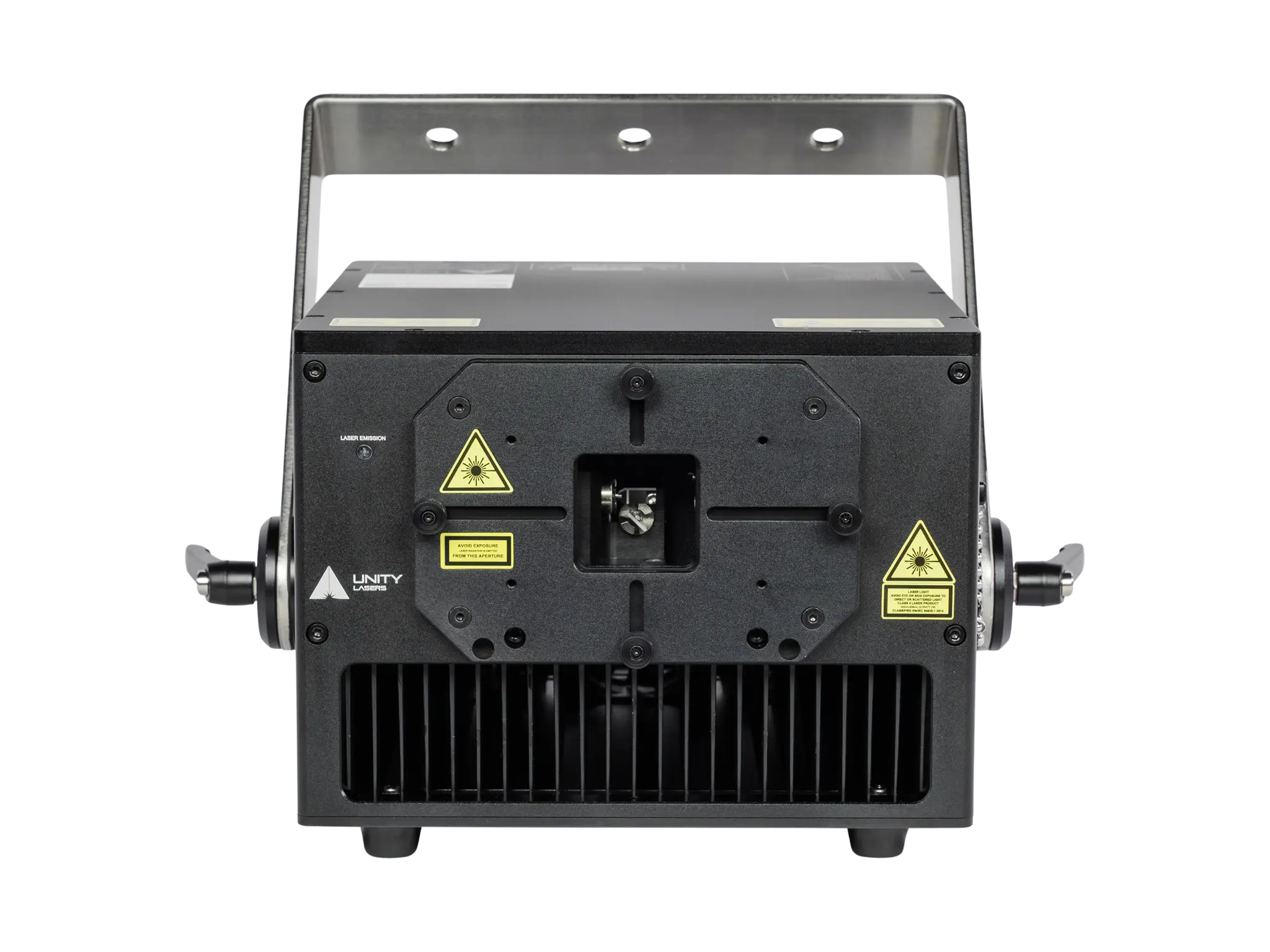

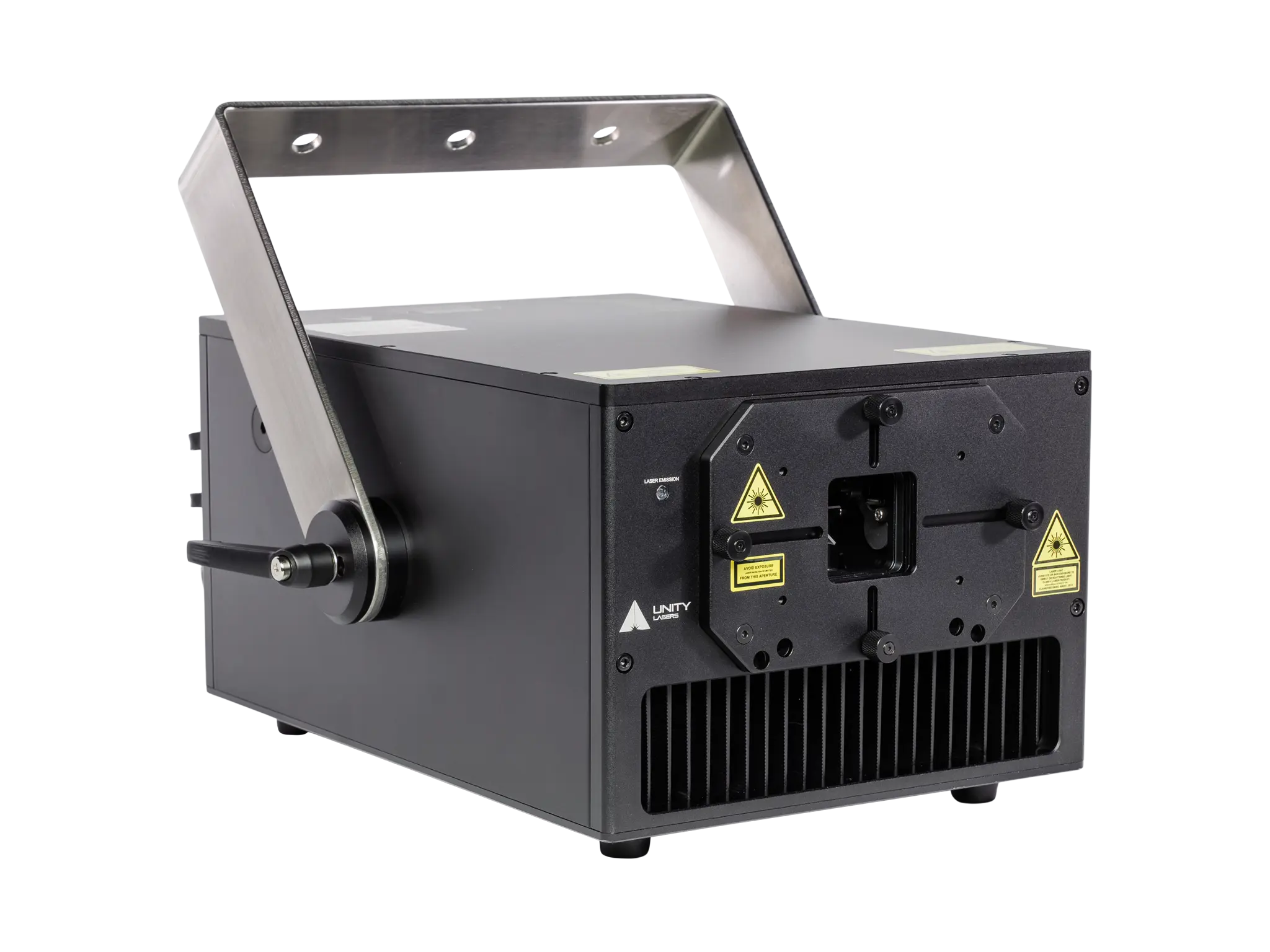

Unity Elite Pro IP65 40 front facing right

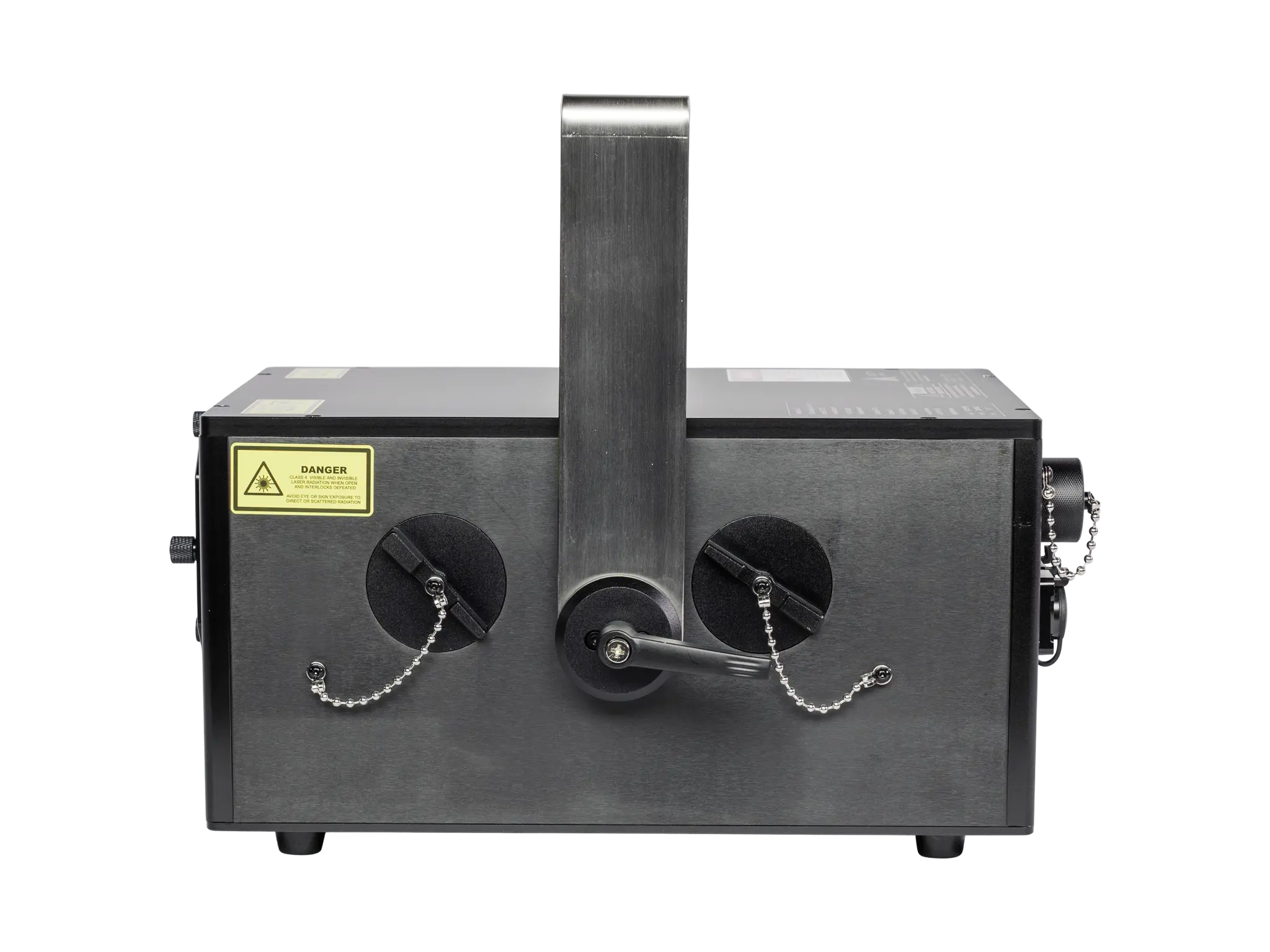

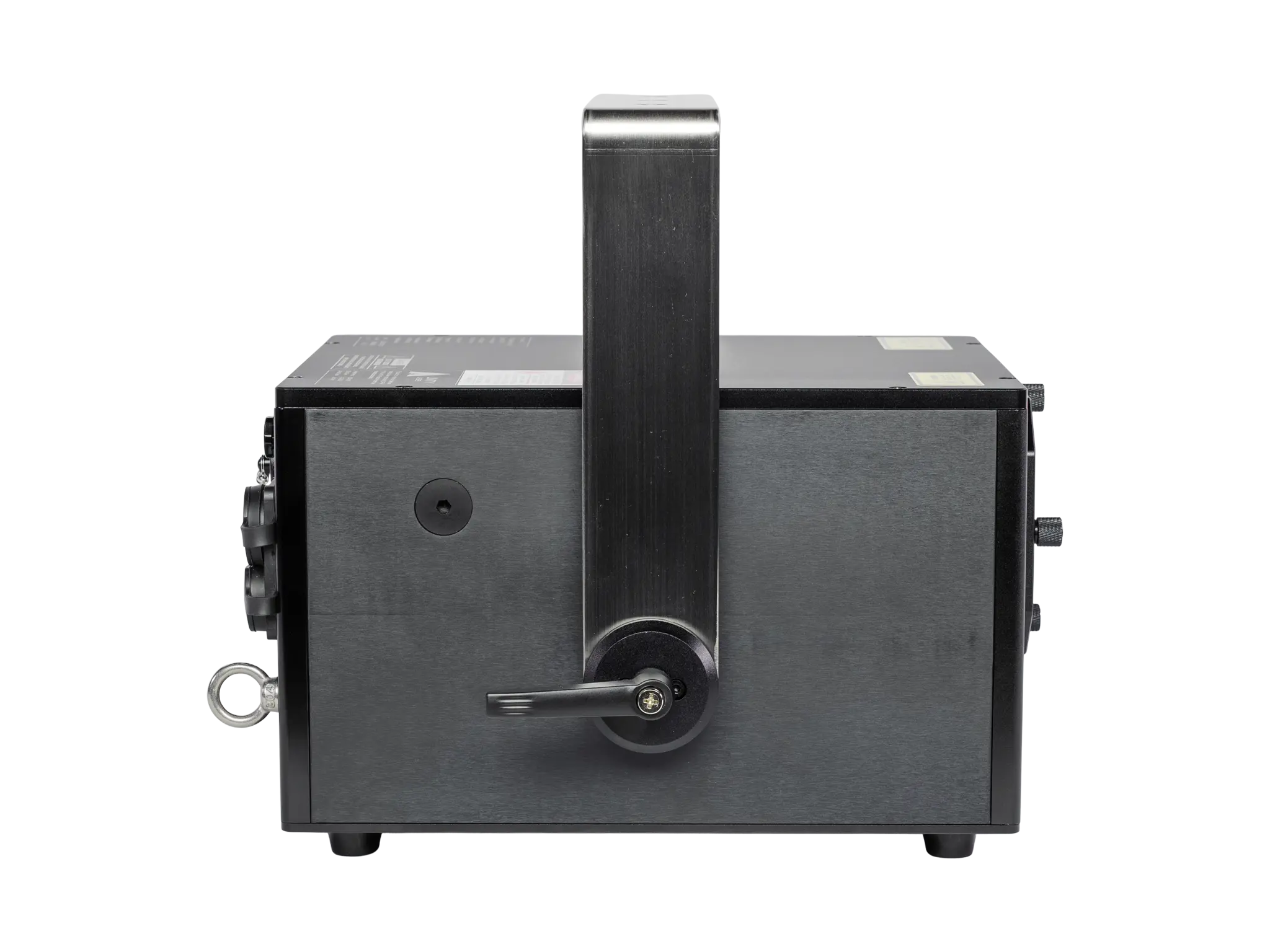

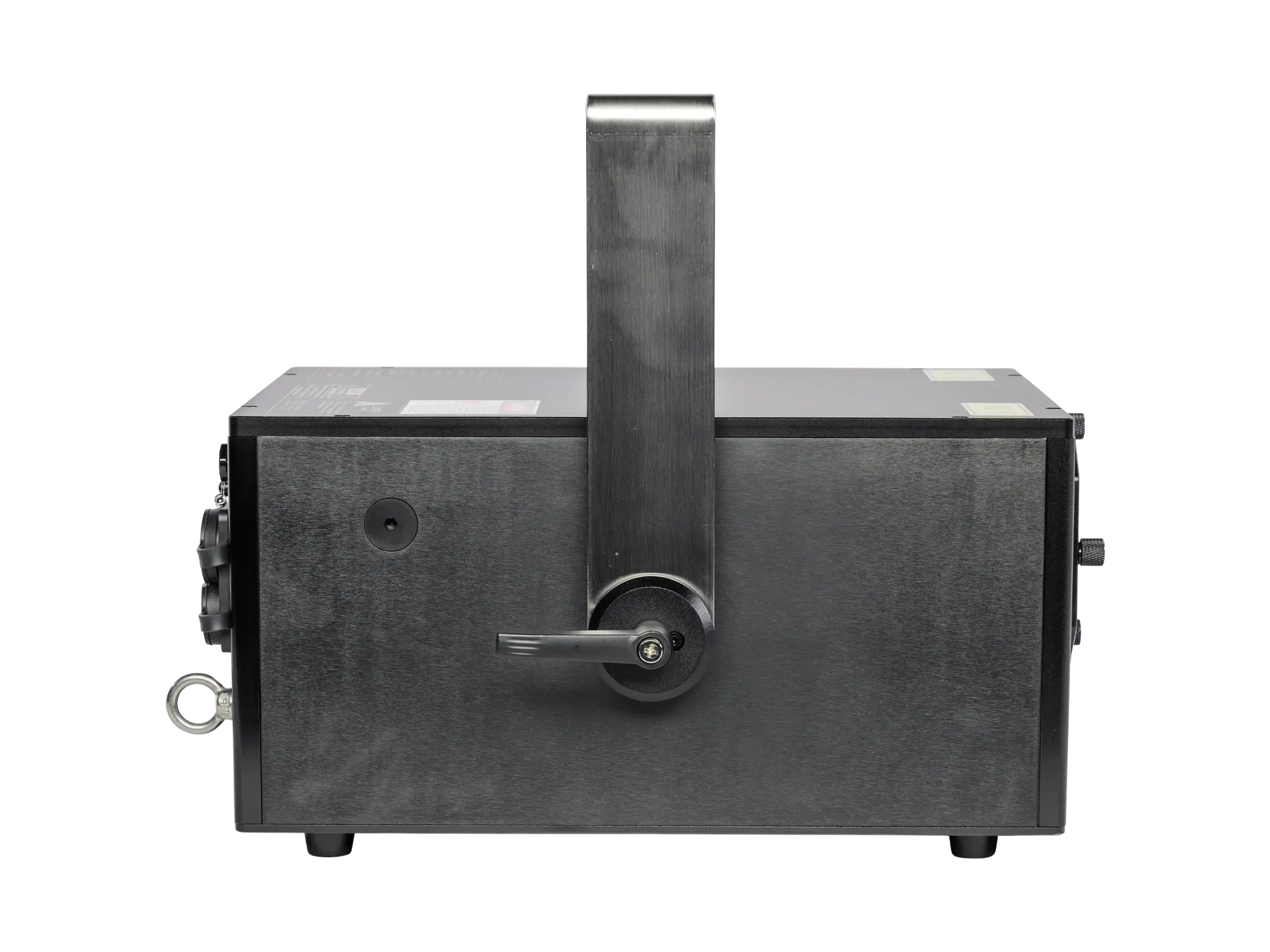

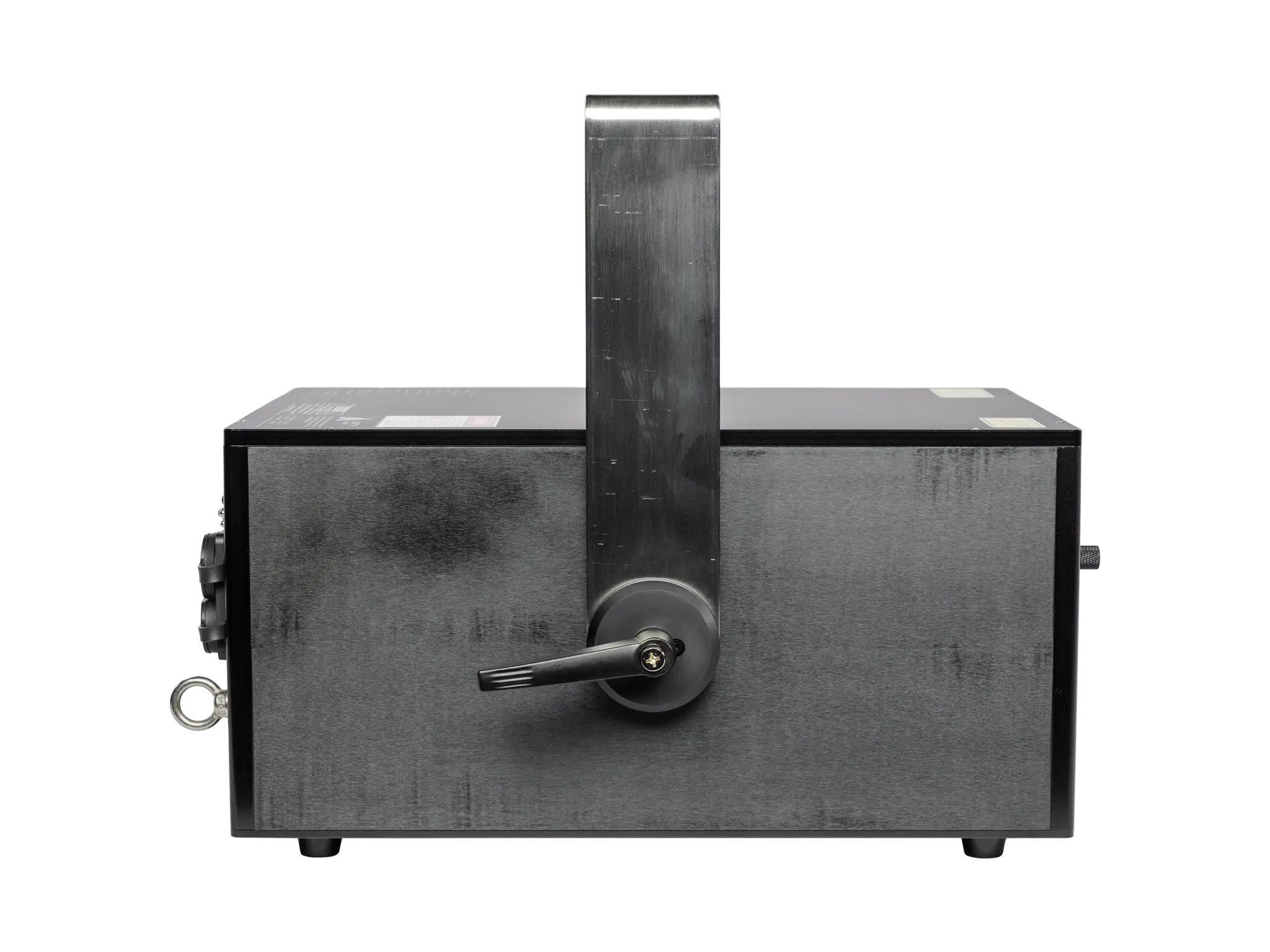

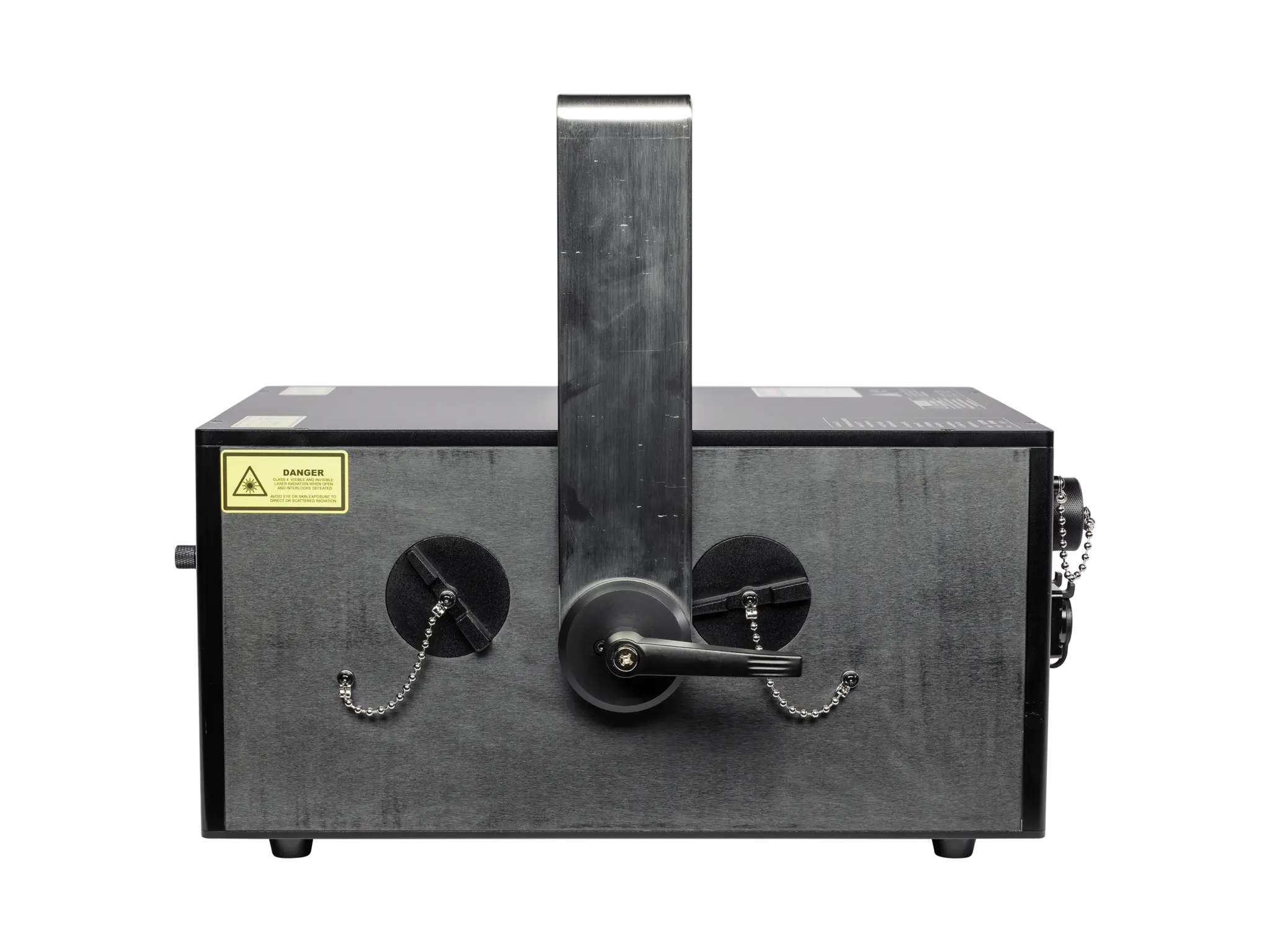

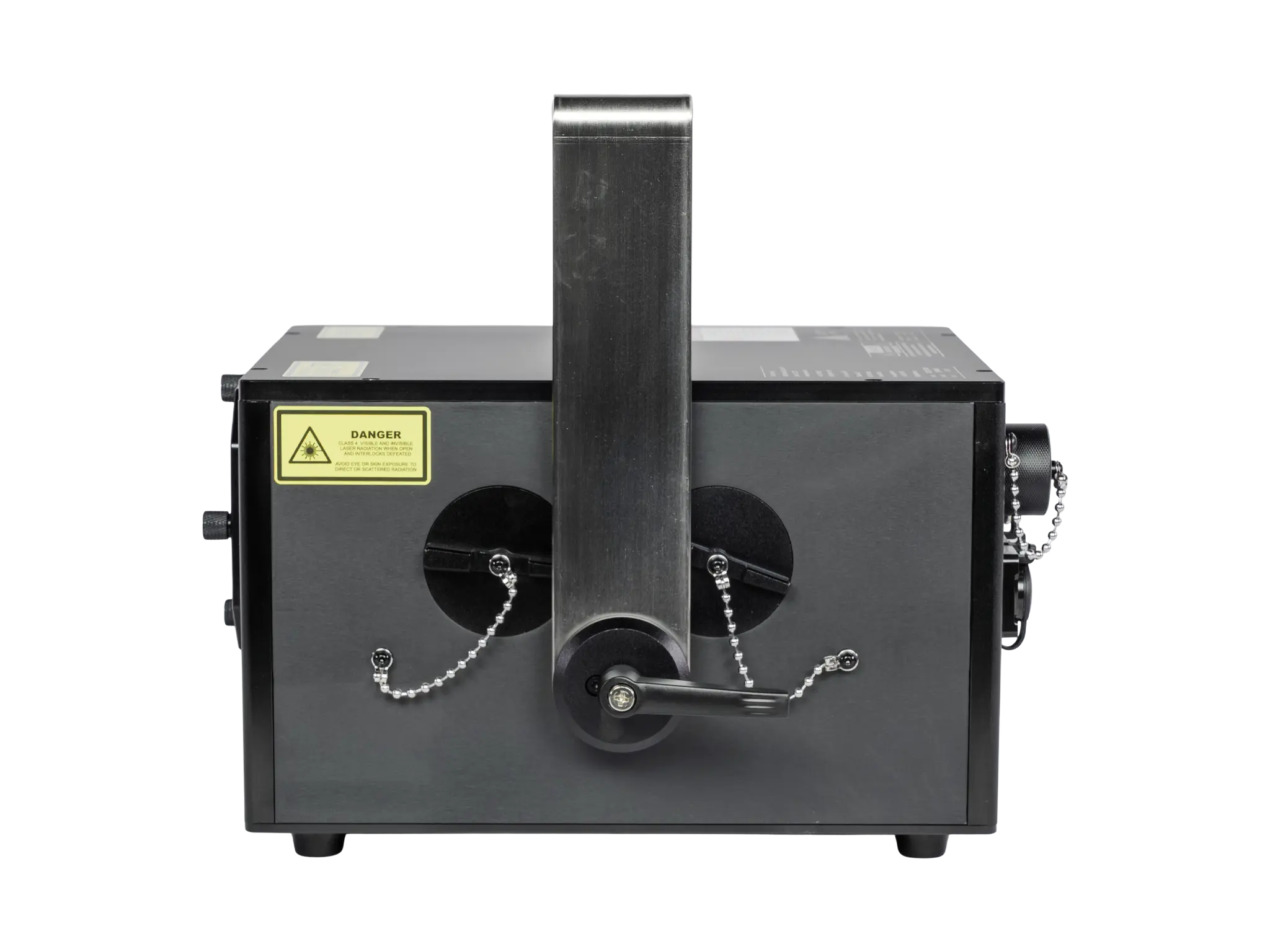

Unity Elite Pro IP65 40 side of the laser projector

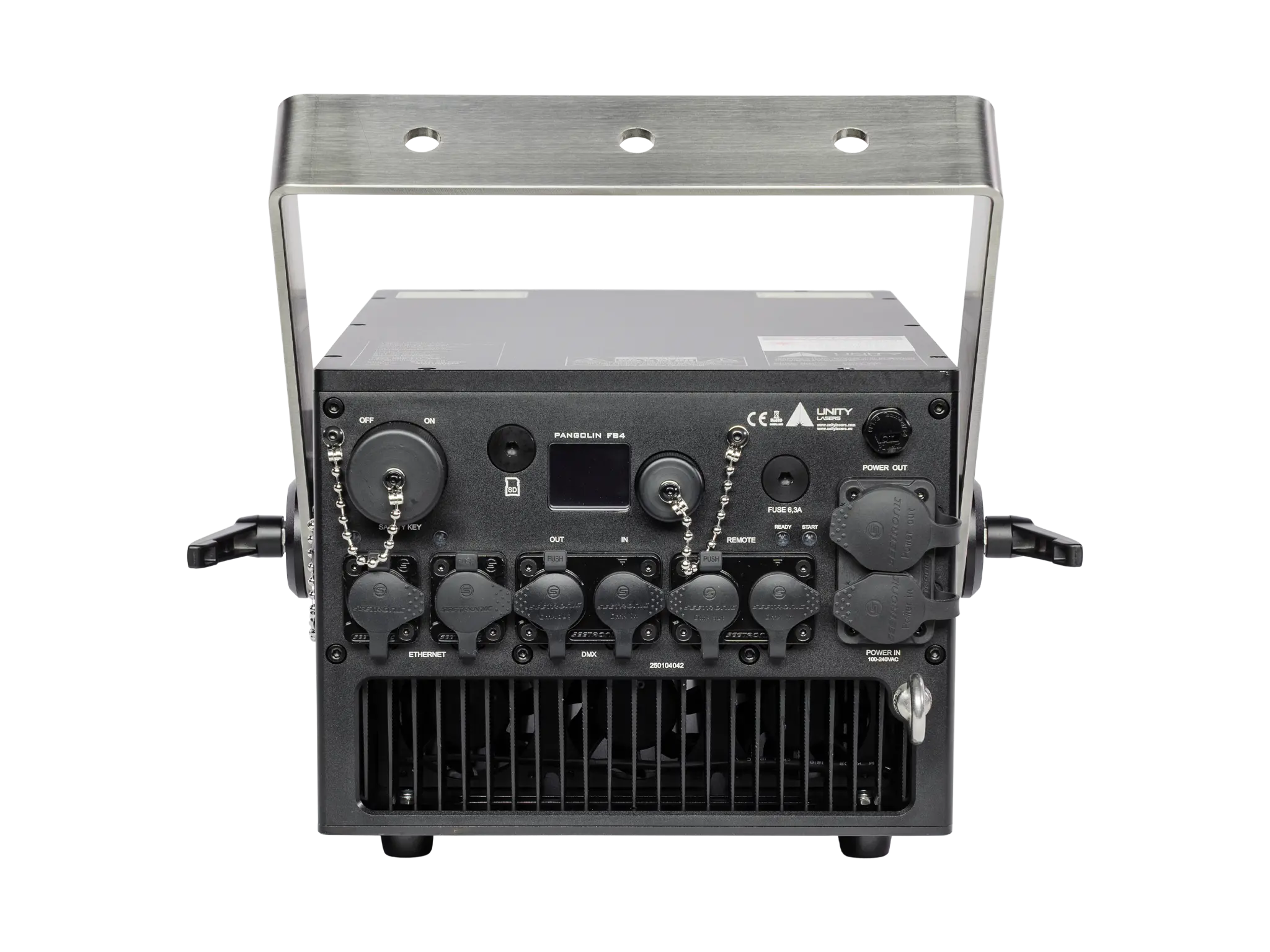

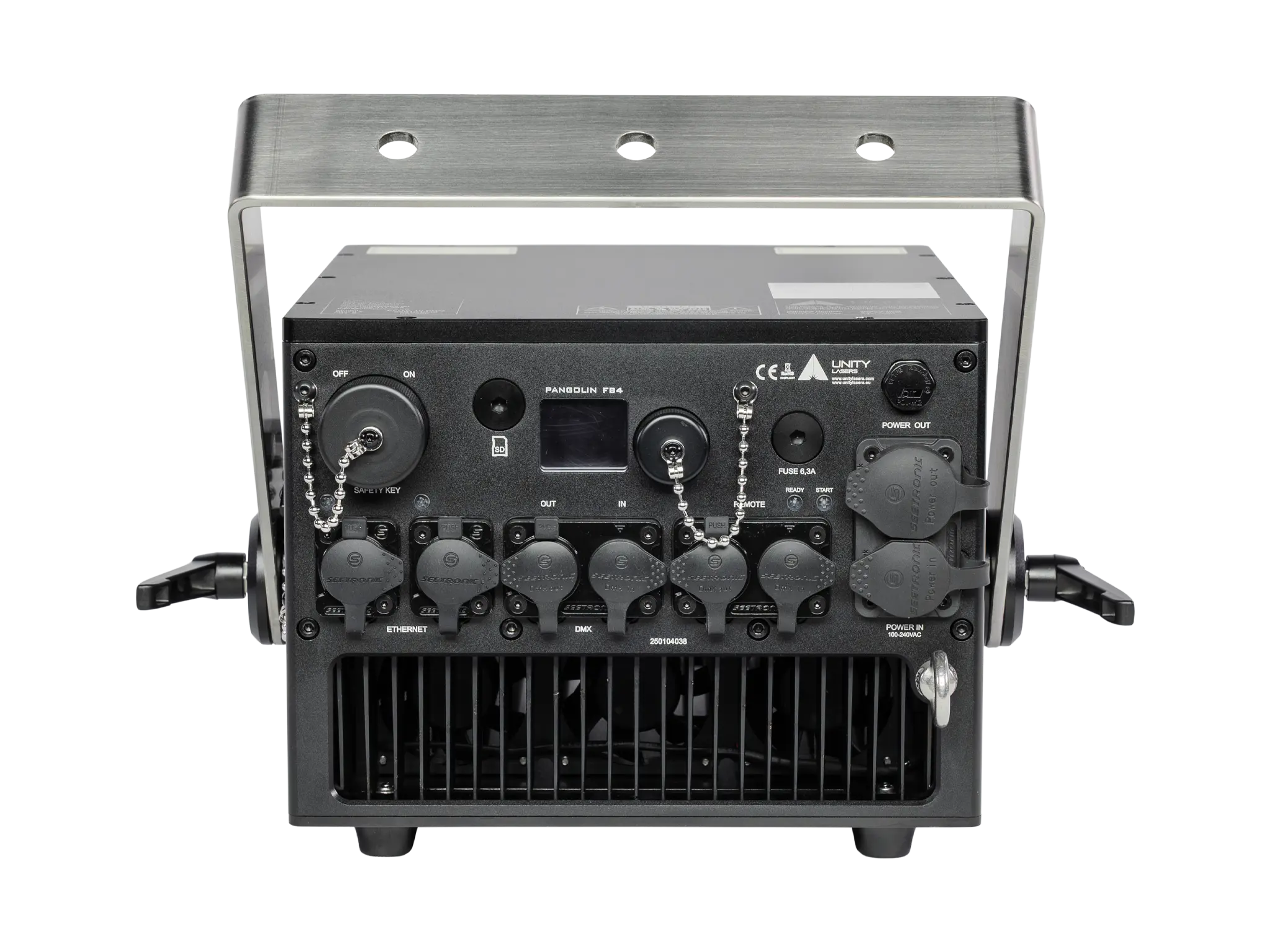

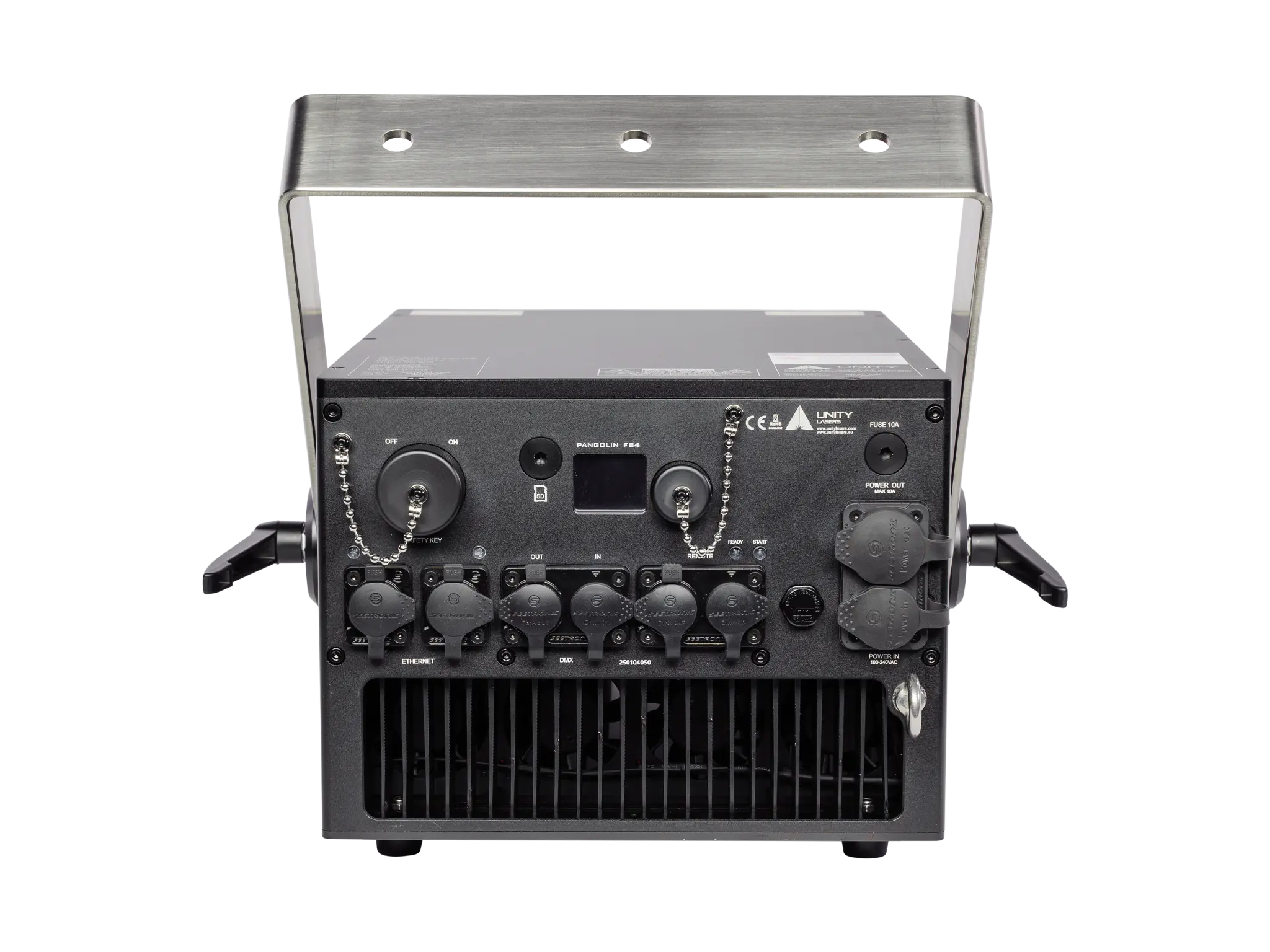

Unity Elite Pro IP65 40 backside facing right

ELITE PRO FB4 IP65

$4,826.00

$5,363.00

Save $537.00

Model: 10W

10W 20W 30W 40W

This product ships in 2-4 weeks. Order now to reserve your unit.

Product video
Comparison
Specifications
What's in the box
Downloads

ABOUT THE

ELITE PRO FB4 IP65

Brighter, bolder, better… And now, IP65 rated! Designed for lighting professionals working in large scale stadium, arena and outdoor environments, the Elite PRO FB4 (IP65) combine more advanced laser diode sources, optics, and XY scanning technology, offering you brighter more vivid effects, higher resolution images, and a wider coverage of projection when compared to conventional lasers on the market. And now, they feature standard IP65 weatherproof housings, ideal for the most demanding applications and conditions.

Compare

Discover which power level will best fit your specific application.

Specifications

Product Name:

ELITE 10 PRO (IP65)

ELITE 20 PRO (IP65)

ELITE 30 PRO (IP65)

ELITE 40 PRO (IP65)

Type Of Laser:

Full-colour, Semiconductor diode laser system

Guaranteed Optical Output:

>10W

>20W

>30W

>40W

Suitable For:

Lighting professionals: large indoor venues (up to 10,000 people), medium outdoor shows. Beam show, text, graphic, and mapping capable

Lighting professionals: arena sized venues (up to 30,000 people), outdoor shows. Beam show, text, graphic, and mapping capable

Lighting professionals: arena sized venues (up to 40,000 people), larger outdoor shows. Beam show, text, graphic, and mapping capable

Lighting professionals: arena sized venues (up to 50,000 people), larger outdoor shows. Beam show, text, graphic, and mapping capable

Control Signal:

Pangolin FB4 DMX [Ethernet, ArtNet, DMX, sACN | PC, Lighting Console, Auto Mode, Mobile App: Apple, Android]

Scanning System:

35,000 Points per second @ 8°

30,000 Points per second @ 8°

Scan Angle:

45°

Safety:

Fully complies with the latest EN 60825-1 and FDA regulations

Weight:

12.7kg

15.5kg

21kg

22kg

Package Includes:

Laser projector w/ FB4 DMX, IP65 housing, protective case, Estop box, Estop cable (10M/30ft), ethernet cable (10M/30ft), power cable (1.5M/4.5ft), interlock, keys, outdoor RJ45 connectors, manual, quickstart guide, variance card (* service dongle if outside US)

R | G | B [mW]:

3,200 | 3,200 | 4,000

6,400 | 6,400 | 8,000

9,000 | 10,000 | 12,000

11,000 | 14,000 | 16,000

R | G | B [Wavelength]:

638nm | 525nm | 450nm

Beam Size [mm]:

6 x 6

Beam Divergence:

<1.2mrad [Full Angle]

Modulation:

Analog 100kHz

Power Requirements:

100-240V/50-60Hz

Consumption:

Max. 300W

Max. 400W

Max. 700W

Max. 750W

Operation Temperature:

(-10°C)-45°C

Ingress Rating:

IP65

System Features:

All the adjustments, such as power output of each color, X & Y axes invert, X & Y size and position, safety, etc., are managed digitally by the FB4 control system. Ethernet in/out, power in/out, DMX in/out, Estop in/out

Laser Safety Features:

Keyed interlock, Emission delay, Magnetic interlock, Scan-fail safety, Mechanical shutter, Adjustable aperture masking plate.

Notice:

*Due to the Advanced Optical Correction technology used in our laser systems, each laser colour's optical power output may slightly differ from the specification of the respective laser module(s) installed. This does not affect the total guaranteed power output.

Dimensions [mm]:

Length: 328 | Width: 338 | Height: 191

Length: 385 | Width: 338 | Height: 191

Length: 439 | Width: 408 | Height: 211

Control

Unity Elite PRO FB4 (IP65) lasers come with our FB4 hardware integrated inside. Allowing you to control these lasers from a lighting console, PC, as well as in stand-alone “auto” mode. Additionally, the lasers support all major lighting protocols (DMX, ArtNET, sACN, timecode, and more) so you can easily integrate into any advanced multimedia show workflow. Multiple lasers can also easily be connected (over ethernet, ArtNET, or DMX) so you can run synchronized multi-projector shows easily. Additionally, the lasers feature an integrated network switch, for faster deployment of multiple laser systems.

Functionality

These lasers feature a true IP65 weatherproof housings, for use in any environment. All systems use the very latest in laser diode technology, boasting a stunning white balance, with a uniform beam profile even with long distance projections. The advanced laser diode drivers offer excellent analog modulation, with perfectly smooth fade-in and fade-out effects. And the high speed XY scanning systems allow you to project more complex atmospheric effects, as well as higher resolution laser graphics, text, logos, and mapping sequences.

Safety

We also equip the Elite PRO FB4 (IP65) with the very latest in laser safety features (including e-stop and interlock with manual reset, emission delay, mechanical shutter, and masking plate). Convenient external adjustments are also provided natively on the lasers through the FB4 digital display, offering tools to adjust size, position, rotation, colors, geometric correction, and more. Additionally, the lasers feature ethernet in and out, power in, DMX in/out, and Estop in/out connectivity.
