ELITE PRO FB4

$2,637.00

$2,930.00

Save $293.00

Model: 3W

3W 5W

Quantity:

In stock

Product video
Comparison
Specifications
What's in the box
Downloads

About the

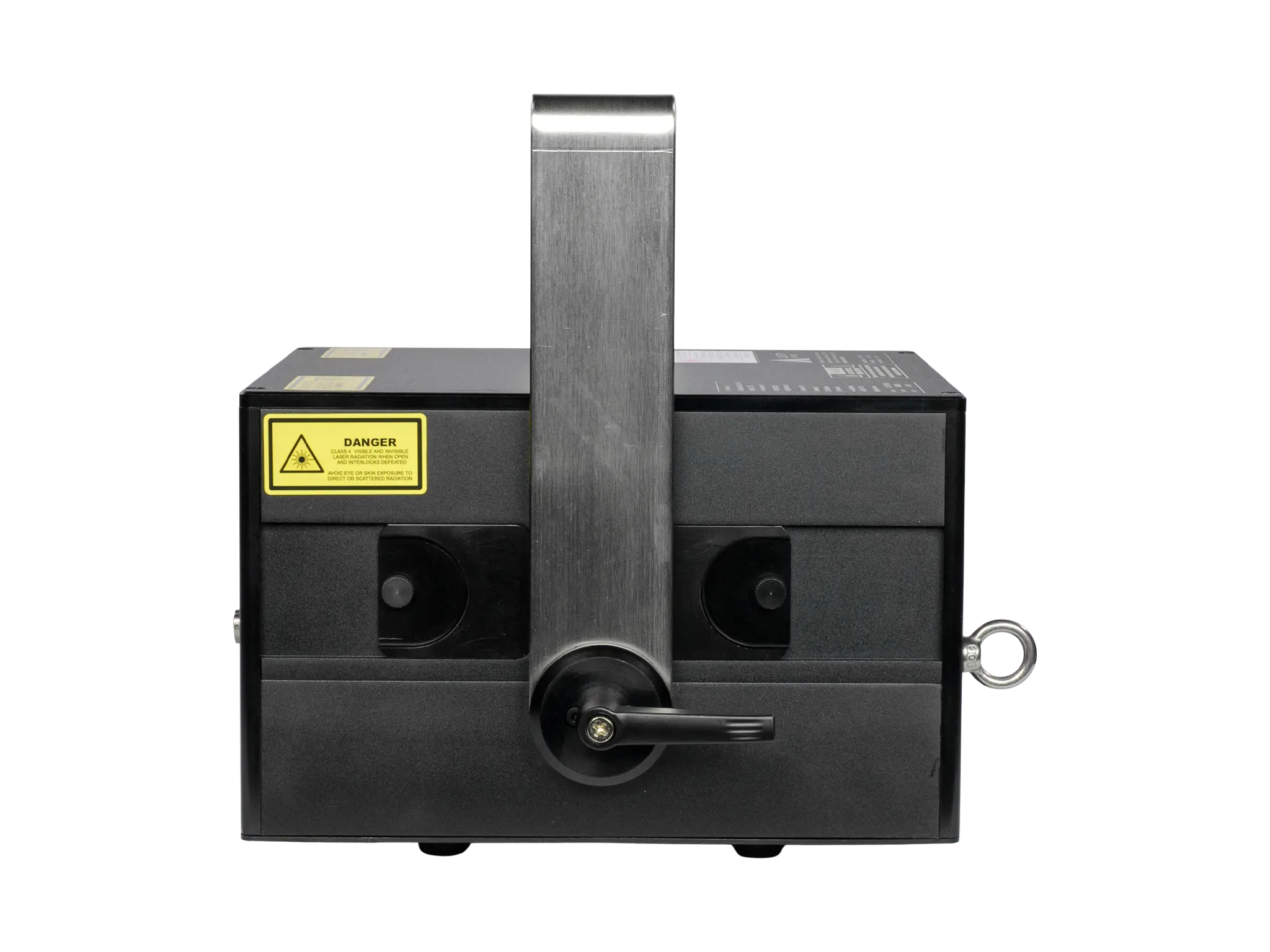

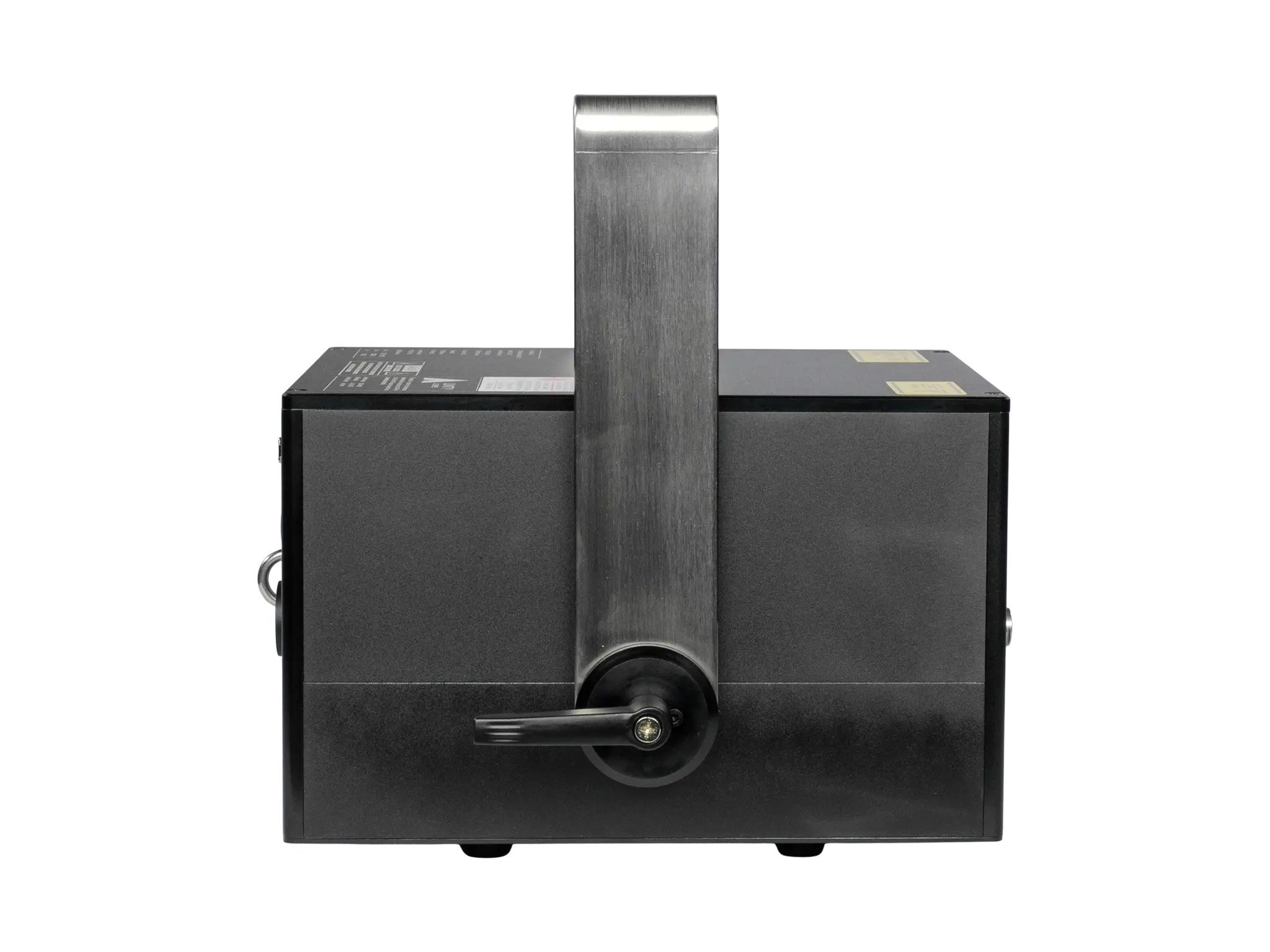

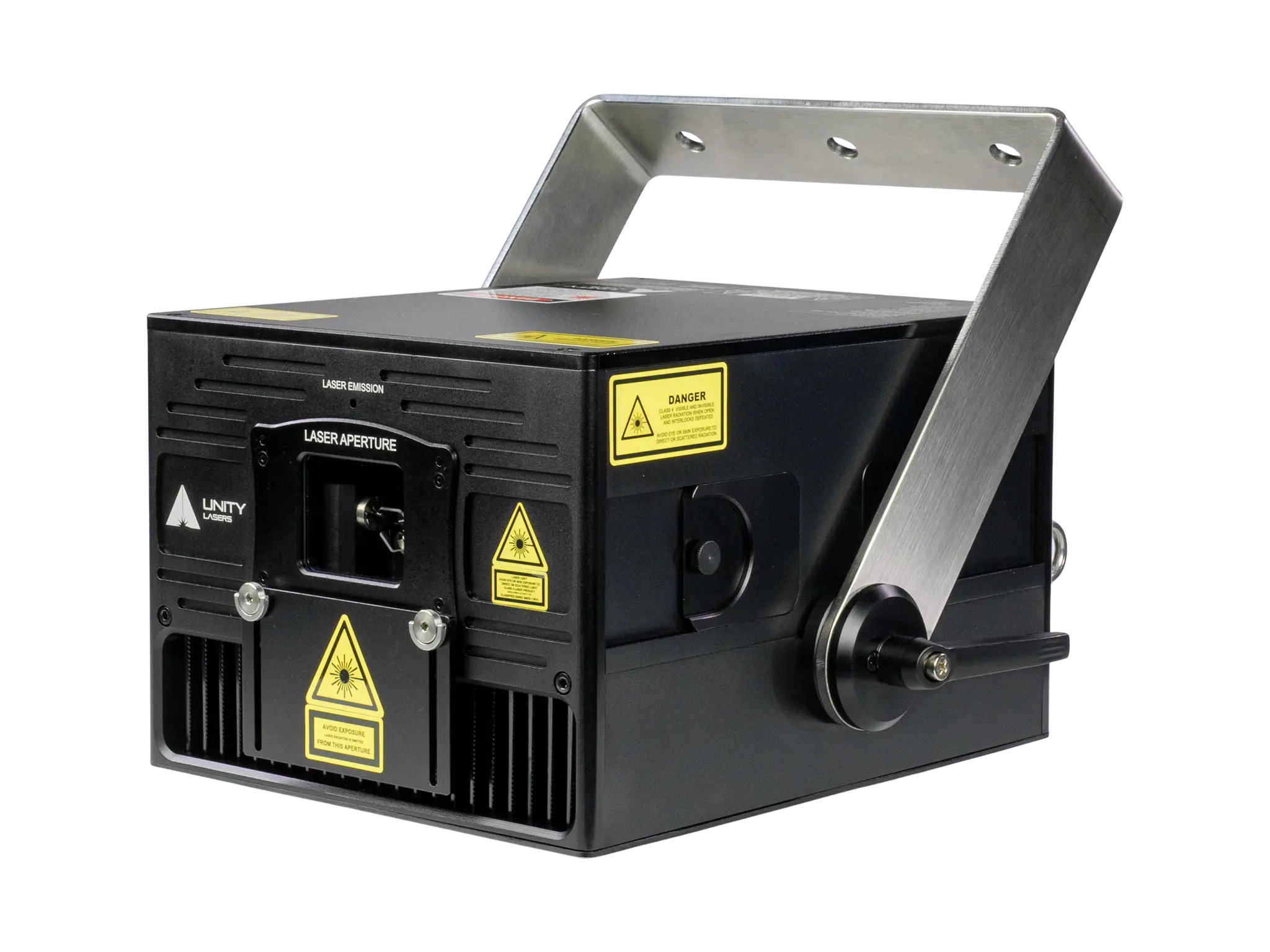

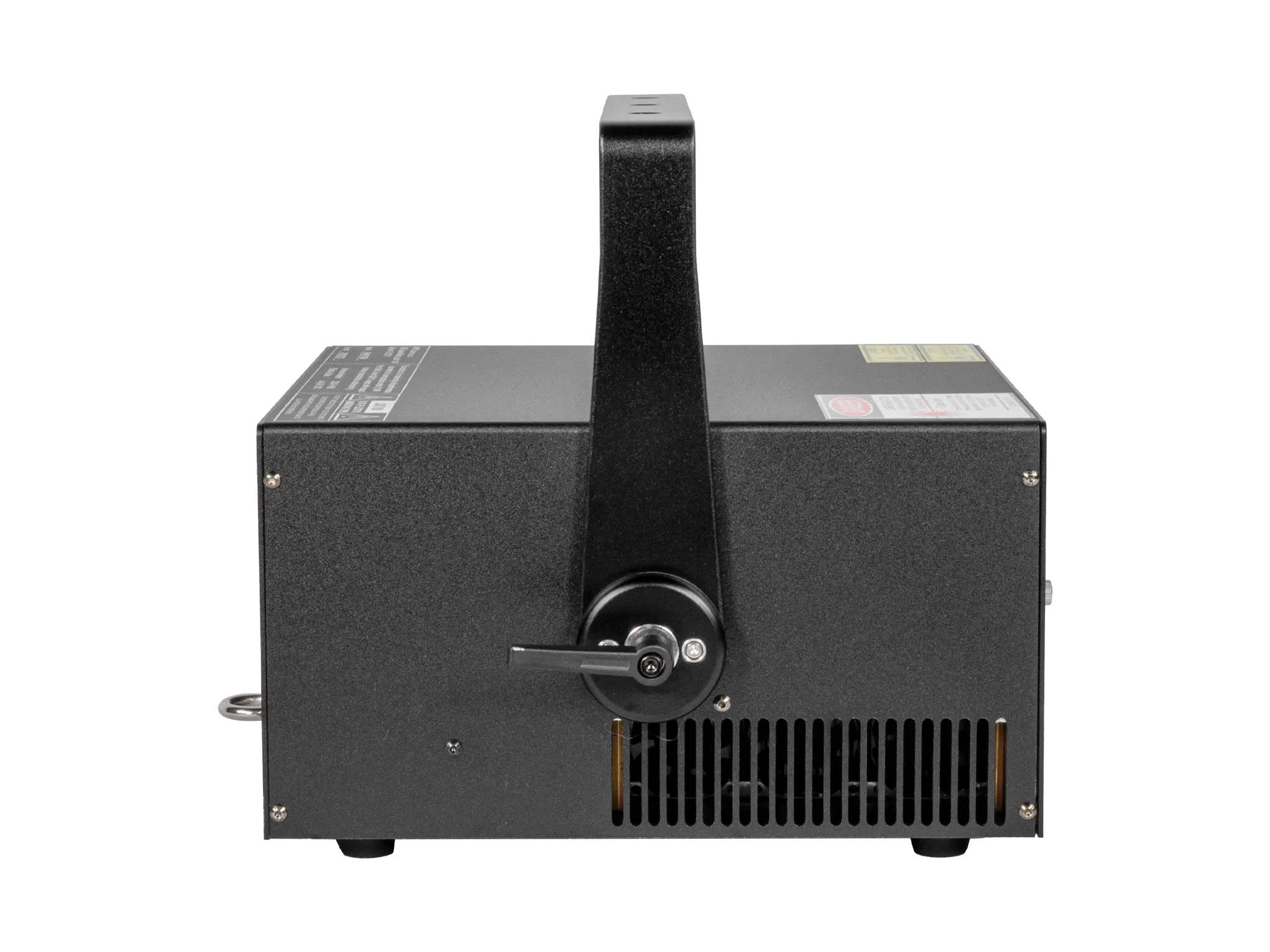

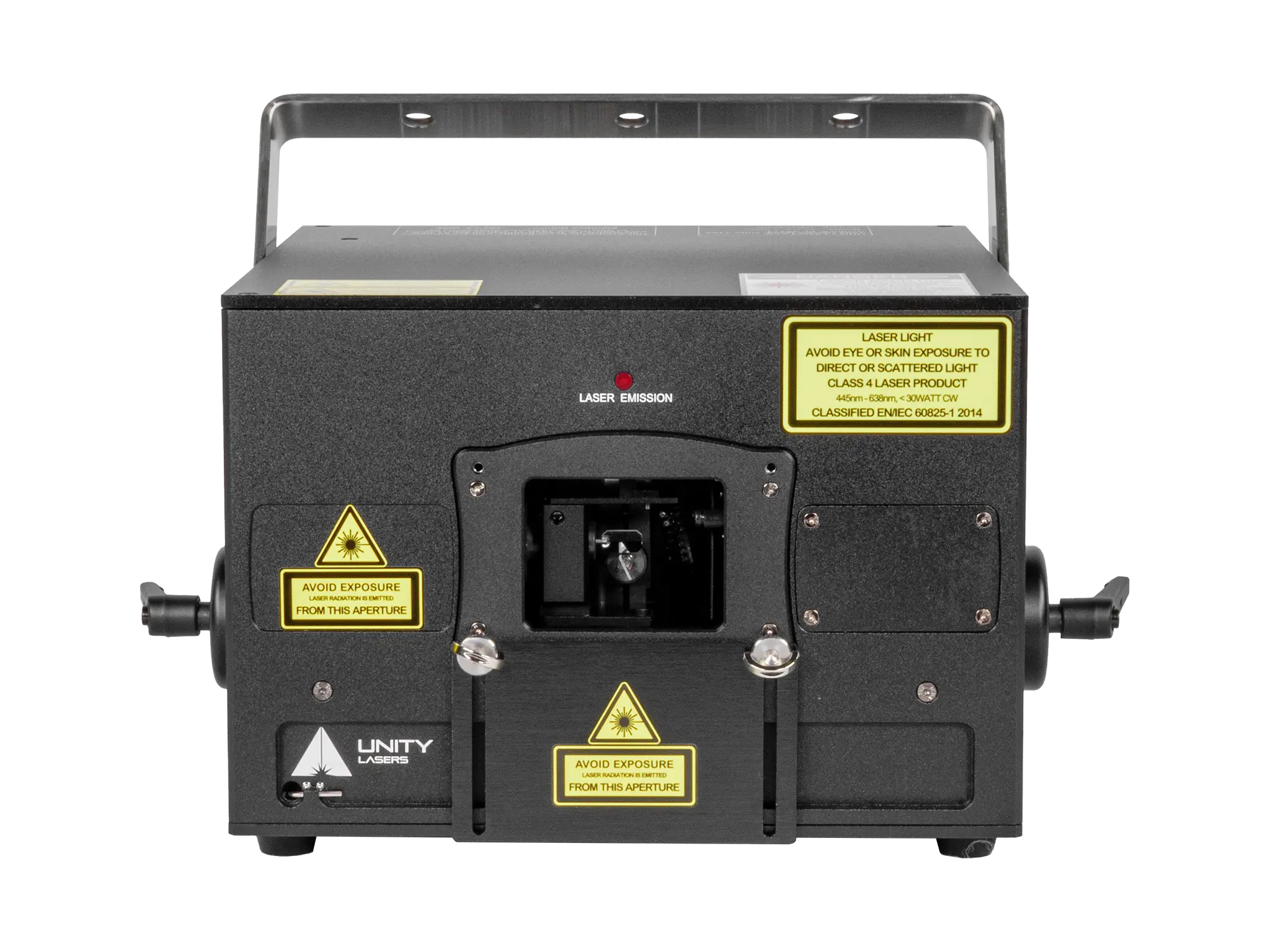

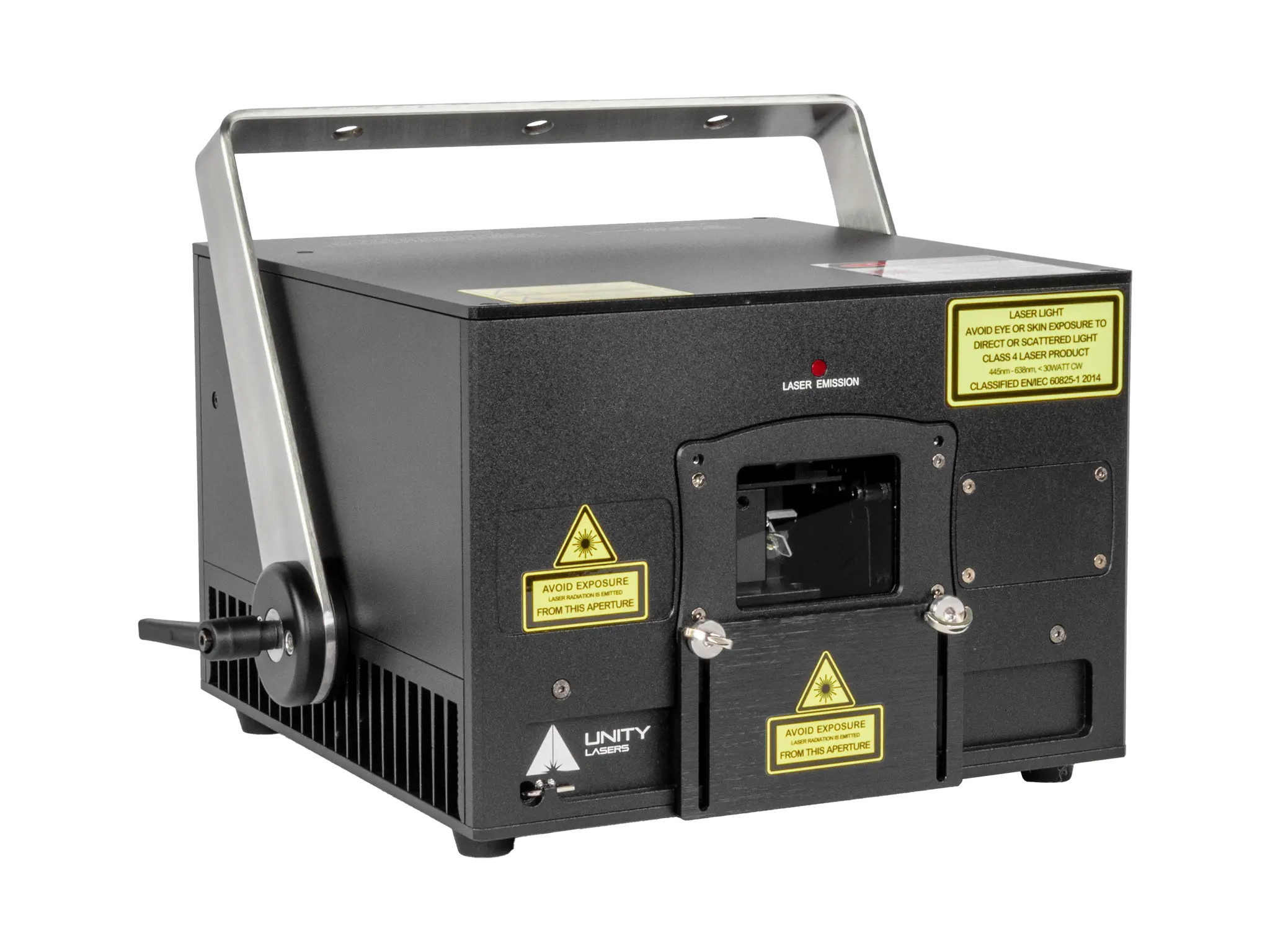

ELITE PRO FB4

Brighter, bolder, better… Designed for lighting professionals, the Elite PRO FB4 are built differently. They combine more advanced laser diode sources, optics, and XY scanning technology, offering you brighter more vivid effects, higher resolution images, and a wider coverage of projection when compared to conventional lasers on the market. Ideal for professionals working in clubs, corporate, theater, house of worship, and small sports arenas.

Compare

Discover which power level will best fit your specific application.

Specifications

Product Name:

ELITE 3 PRO

ELITE 5 PRO

Type Of Laser:

Full-colour, Semiconductor diode laser system

Guaranteed Optical Output:

>3.1W

>5W

Suitable For:

Lighting professionals: medium indoor venues, clubs, theater, house of worship, gymnasium (up to 3,000 people). Beam show, text, graphic, and mapping capable

Lighting professionals: larger indoor venues, clubs, theater, house of worship, gymnasium (up to 5,000 people), small outdoor shows. Beam show, text, graphic, and mapping capable

Control Signal:

Pangolin FB4 DMX [Ethernet, ArtNet, DMX, sACN, ILDA out | PC, Lighting Console, Auto Mode, Mobile App: Apple, Android]

Scanning System:

30,000 Points per second @ 8°

35,000 Points per second @ 8°

Scan Angle:

50°

45°

Safety:

Fully complies with the latest EN 60825-1 and FDA regulations

Weight:

8kg

9kg

Package Includes:

Laser projector w/ FB4 DMX, protective case, Estop box, Estop cable (10M/30ft), ethernet cable (10M/30ft), power cable (1.5M/4.5ft), interlock, keys, manual, quickstart guide, variance card (* service dongle if outside US)

R | G | B [mW]:

610 | 800 | 1,760

1,800 | 1,600 | 2,000

R | G | B [Wavelength]:

638nm | 525nm | 455nm

638nm | 525nm | 450nm

Beam Size [mm]:

2 x 4

6 x 5

Beam Divergence:

<1.0mrad [Full Angle]

<1.2mrad [Full Angle]

Modulation:

Analog 100kHz

Power Requirements:

100-230V/50Hz

100-240V/50-60Hz

Consumption:

Max. 250W

Max. 150W

Operation Temperature:

10-40 °C

Ingress Rating:

IP4X

System Features:

All the adjustments, such as power output of each color, X & Y axes invert, X & Y size and position, safety, etc., are managed digitally by the FB4 control system. Ethernet in, power in/out, DMX in/out, Estop in/out, ILDA out

All the adjustments, such as power output of each color, X & Y axes invert, X & Y size and position, safety, etc., are managed digitally by the FB4 control system. Ethernet in/out, power in/out, DMX in/out, Estop in/out, ILDA out

Laser Safety Features:

Keyed interlock, Emission delay, Magnetic interlock, Scan-fail safety, Mechanical shutter, Adjustable aperture masking plate.

Notice:

*Due to Advanced Optical Correction technology used in our laser systems, each laser colour's optical power output may slightly differ from the specification of the respective laser module(s) installed. This does not affect the total guaranteed power output.

Dimensions [mm]:

Length: 238 | Width: 246 | Height: 175

Length: 300 | Width: 307 | Height: 181

Control

The Elite PRO FB4 comes with our FB4 hardware integrated inside. Allowing you to control these lasers from a lighting console, PC, as well as in stand-alone “auto” mode. Additionally, the lasers support all major lighting protocols (DMX, ArtNET, sACN, timecode, and more) so you can easily integrate into any advanced multimedia show workflow. Multiple lasers can also easily be connected (over ethernet, ArtNET, or DMX) so you can run synchronized multi-projector shows easily. Additionally, the lasers feature an integrated network switch (5W model), for faster deployment of multiple laser systems.

Functionality

All systems use the very latest in laser diode technology, boasting a stunning white balance, with a uniform beam profile even with long distance projections. The advanced laser diode drivers offer excellent analog modulation, with perfectly smooth fade-in and fade-out effects. And the high speed XY scanning systems allow you to project more complex atmospheric effects, as well as higher resolution laser graphics, text, logos, and mapping sequences.

Safety

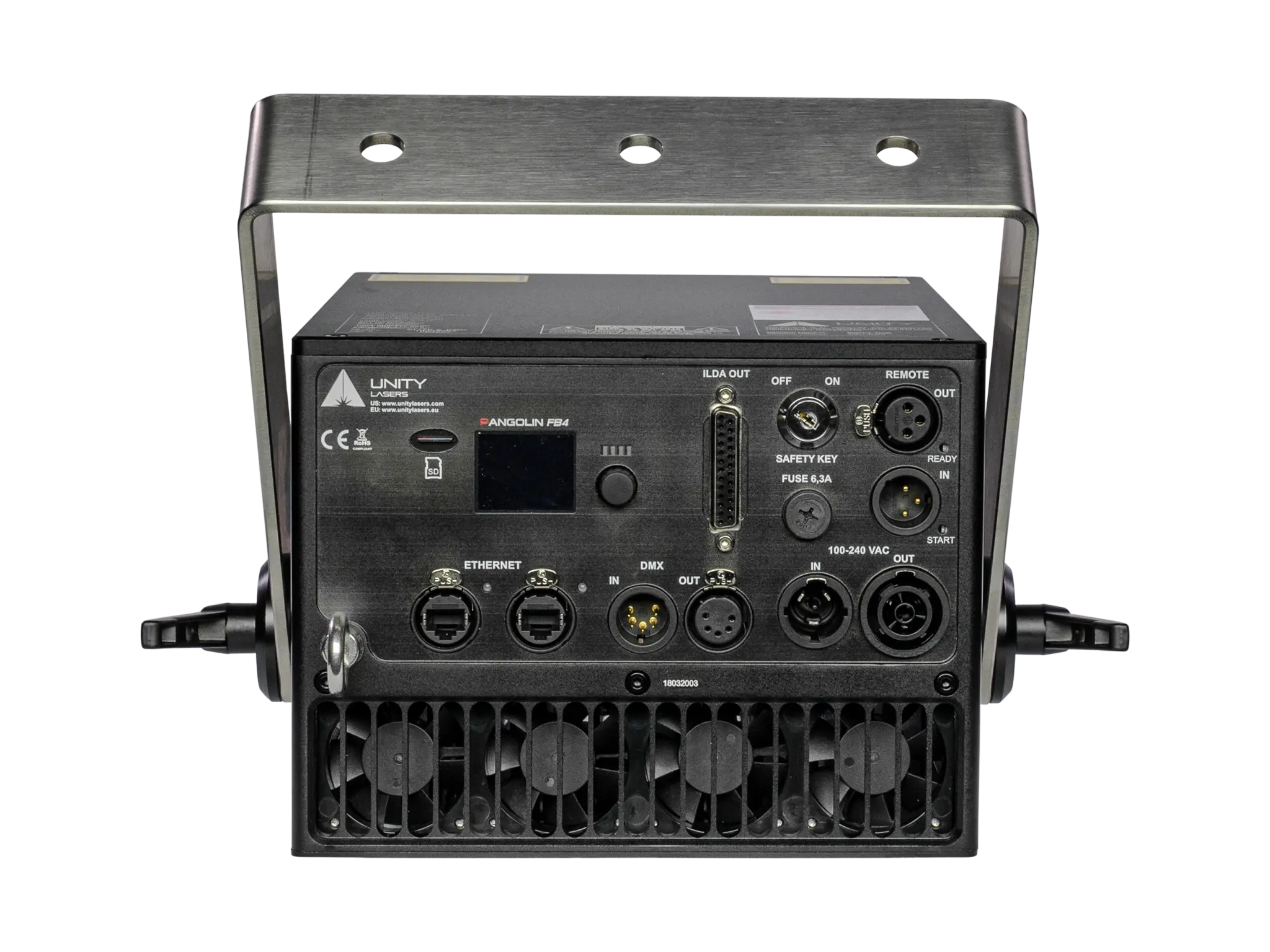

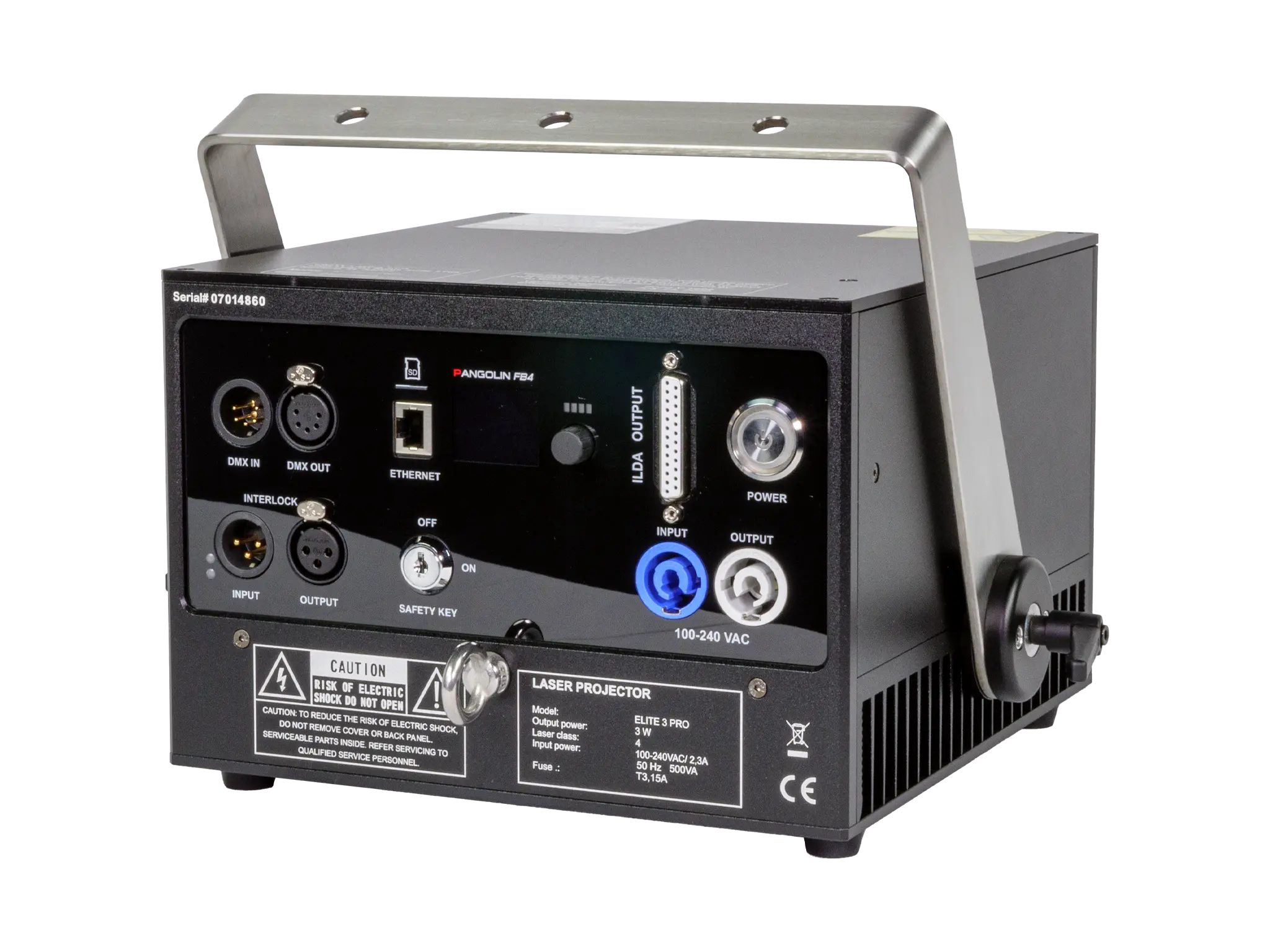

The Elite PRO FB4 is equipped with the very latest in laser safety features (including e-stop and interlock with manual reset, emission delay, mechanical shutter, and masking plate). Convenient external adjustments are also provided natively on the lasers through the FB4 digital display, offering tools to adjust size, position, rotation, colors, geometric correction, and more. Additionally, the lasers feature ethernet in (and out, on 5W models), power in/out, DMX in/out, Estop in/out, and ILDA out connectivity.
