RAW (DMX+ILDA)
About the
RAW (DMX+ILDA)
The Unity RAW (DMX+ILDA) is designed for passionate laser enthusiasts. Ideal for DJs, clubs, as well as home and hobby use. Capable of performing high impact aerial beam effects, as well as being text, graphic, logo, and mapping capable. The RAW (DMX+ILDA) gives you everything you need to project your very own laser displays, right out of the box.
Compare
Discover which power level will best fit your specific application.
RAW 1.7 (DMX+ILDA)
RAW 3 (DMX+ILDA)
RAW 5 (DMX+ILDA)
RAW 10 (DMX+ILDA)
Full-colour, Semiconductor diode laser system
Full-colour, Semiconductor diode laser system
Full-colour, Semiconductor diode laser system
full-color, semiconductor diode laser system
>1.7W
>3W
>5W
>10W
Clubs, DJs, smaller indoor venues, home and hobby use. Beam show, text, graphic, and mapping capable
Clubs, DJs, medium indoor venues (up to 3,000 people), home and hobby use. Beam show, text, graphic, and mapping capable
Clubs, DJs, large indoor venues (up to 5,000 people), small outdoor shows. Beam show, text, graphic, and mapping capable
Clubs, DJs, large indoor venues (over 5,000 people), medium sized outdoor shows. Beam show, text, graphic, and mapping capable
DMX mode, sound active mode, and ILDA mode (we recommend Pangolin FB3QS and QuickShow for ILDA control)
DMX mode, sound active mode, and ILDA mode (we recommend Pangolin FB3QS and QuickShow for ILDA control)
DMX mode, sound active mode, and ILDA mode (we recommend Pangolin FB3QS and QuickShow for ILDA control)
DMX mode, sound active mode, and ILDA mode (we recommend Pangolin FB3QS and QuickShow for ILDA control)
30,000 points per second @ 8°
30,000 points per second @ 8°
30,000 points per second @ 8°
30,000 points per second @ 8°
45°
45°
50°
50°
Fully complies with the latest EN 60825-1 and FDA regulations
Fully complies with the latest EN 60825-1 and FDA regulations
Fully complies with the latest EN 60825-1 and FDA regulations
Fully complies with the latest EN 60825-1 and FDA regulations
5.3kg
5.3kg
8kg
12kg
Laser projector, Estop box, Estop cable (10M/30ft), ILDA cable (10M/30ft), power cable (1.5M/4.5ft), interlock, keys, manual, quickstart guide, variance card, carton packaging (* service dongle if outside US)
Laser projector, Estop box, Estop cable (10M/30ft), ILDA cable (10M/30ft), power cable (1.5M/4.5ft), interlock, keys, manual, quickstart guide, variance card, carton packaging (* service dongle if outside US)
Laser projector, Estop box, Estop cable (10M/30ft), ILDA cable (10M/30ft), power cable (1.5M/4.5ft), interlock, keys, manual, quickstart guide, variance card, carton packaging (* service dongle if outside US)
Laser projector, Estop box, Estop cable (10M/30ft), ILDA cable (10M/30ft), power cable (1.5M/4.5ft), interlock, keys, manual, quickstart guide, variance card, carton packaging (* service dongle if outside US)
350 | 500 | 1,000
500 | 800 | 1,700
1,200 | 1,000 | 2,800
2,700 | 2,700 | 4,800
638nm | 520nm | 450nm
638nm | 525nm | 455nm
638nm | 525nm | 455nm
638nm | 525nm | 455nm
5 x 3
5 x 3
5 x 3
5 x 3
<1.1mrad [Full Angle]
<1.1mrad [Full Angle]
<1.1mrad [Full Angle]
<1.1mrad [full angle]
Analog 50kHz
Analog 50kHz
Analog 50kHz
Analog, up to 50kHz
100-230V/50Hz
100-230V/50Hz
100-230V/50Hz
100-230V/50Hz
Max. 100W
Max. 100W
Max. 150W
max. 350W
10-40 °C
10-40 °C
10-40 °C
10-40 °C
IP4X
IP4X
IP4X
IP4X

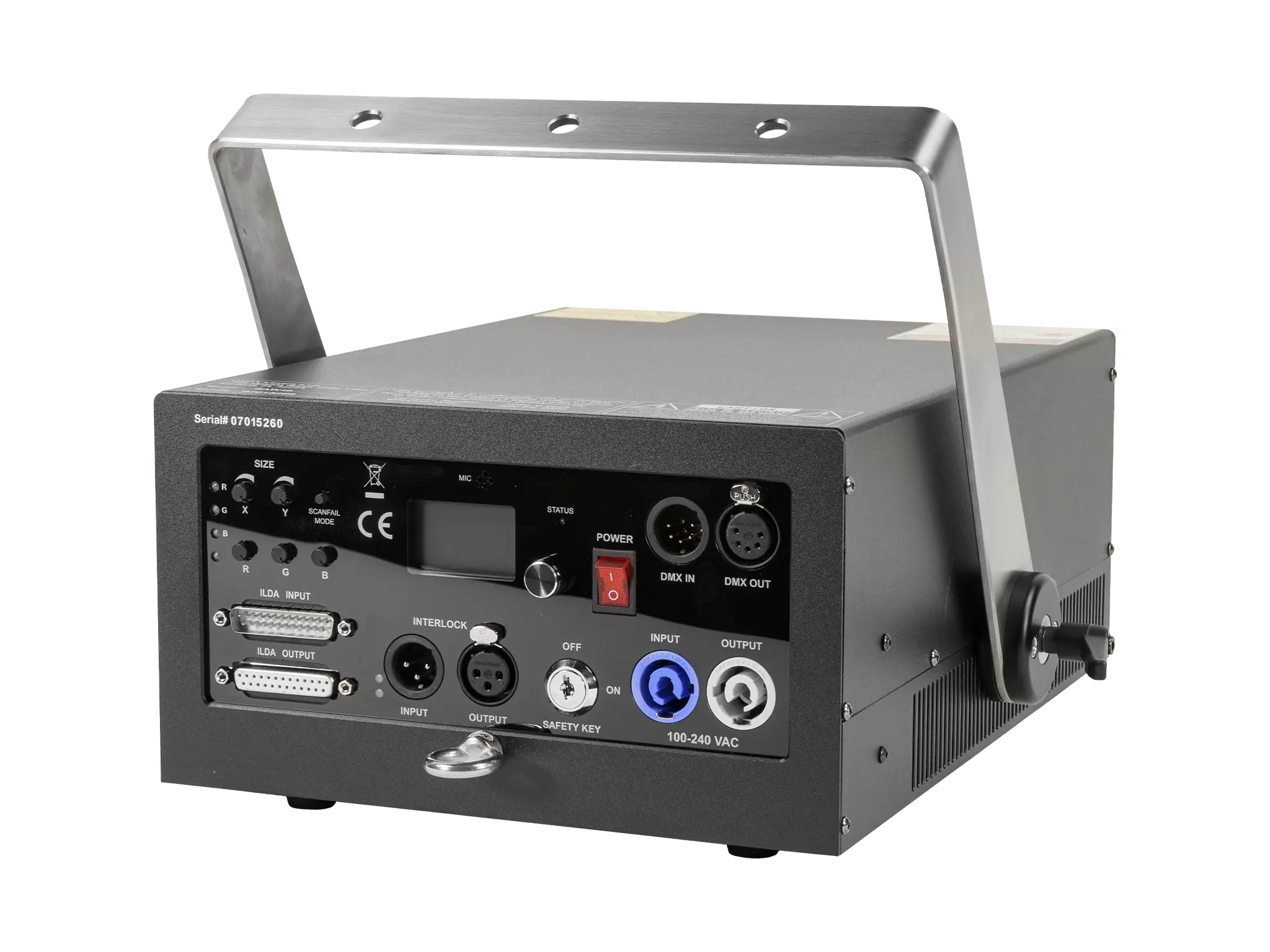

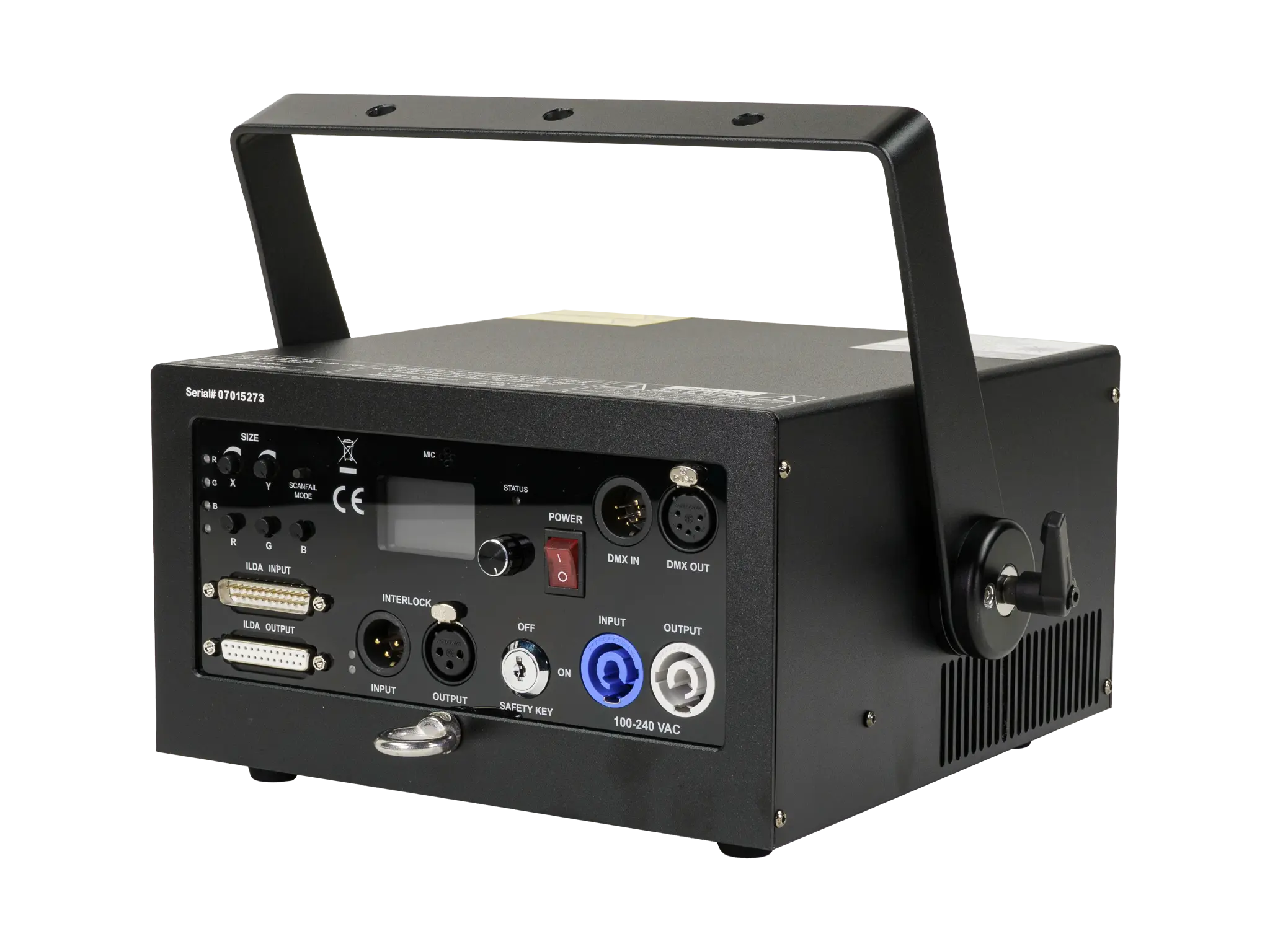

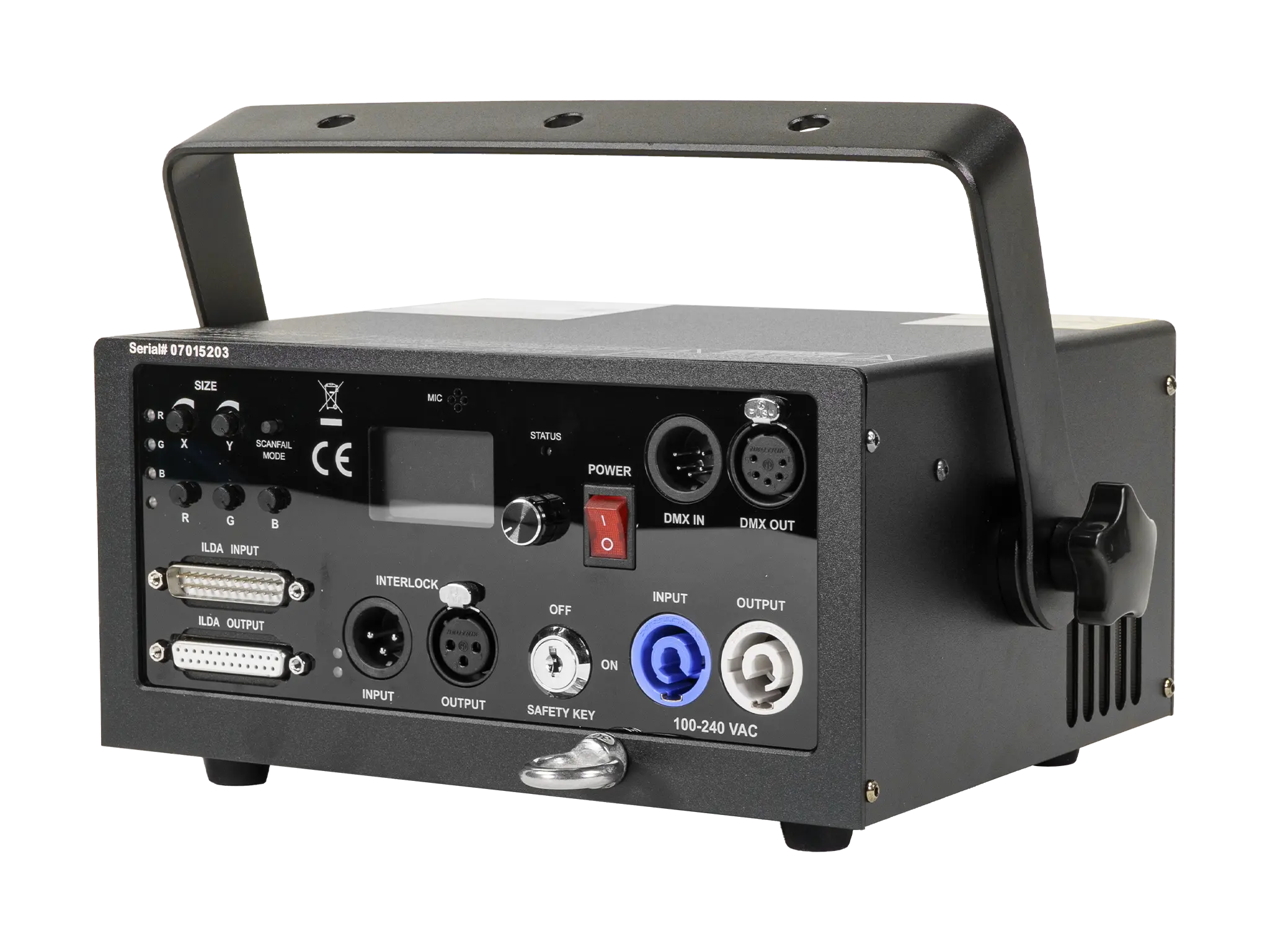

Adjustments for color channels (R,G,B), size/position/invert (X,Y), DMX in/out, ILDA in/out, Estop in/out, power in/out, sound active mode, digital display for DMX address and settings
Adjustments for color channels (R,G,B), size/position/invert (X,Y), DMX in/out, ILDA in/out, Estop in/out, power in/out, sound active mode, digital display for DMX address and settings
Adjustments for color channels (R,G,B), size/position/invert (X,Y), DMX in/out, ILDA in/out, Estop in/out, power in/out, sound active mode, digital display for DMX address and settings
Adjustments for color channels (R,G,B), size/position/invert (X,Y), DMX in/out, ILDA in/out, Estop in/out, power in/out, sound active mode, digital display for DMX address and settings
Keyed interlock, Emission delay, Magnetic interlock, Scan-fail safety, Mechanical shutter, Adjustable aperture masking plate
Keyed interlock, Emission delay, Magnetic interlock, Scan-fail safety, Mechanical shutter, Adjustable aperture masking plate
Keyed interlock, Emission delay, Magnetic interlock, Scan-fail safety, Mechanical shutter, Adjustable aperture masking plate.
Keyed interlock, emission delay, magnetic interlock, scan-fail safety, mechanical shutter, adjustable aperture masking plate.
*Due to Advanced Optical Correction technology used in our laser systems, each laser colour's optical power output may slightly differ from the specification of the respective laser module(s) installed. This does not affect the total guaranteed power output
*Due to the Advanced Optical Correction technology used in our laser systems, each laser colour's optical power output may slightly differ from the specification of the respective laser module(s) installed. This does not affect the total guaranteed power output
*Due to Advanced Optical Correction technology used in our laser systems, each laser colour's optical power output may slightly differ from the specification of the respective laser module(s) installed. This does not affect the total guaranteed power output
*Due to Advanced Optical Correction technology used in our laser systems the optical power output of each laser colour within the system may slightly differ from the specification of respective laser module(s) installed. This does not affect the total guaranteed power output.
Depth: 238 | Width: 192 | Height: 126
Depth: 238 | Width: 192 | Height: 126
Depth: 252 | Width: 247 | Height: 148
Length: 340 | Width: 247 | Height: 148
Control
Unity RAW DMX+ILDA lasers come with a native DMX control system built inside, for plug-and-play connectivity in any DMX-based workflow – no additional hardware or software is required for operation. They also have sound active mode, great for simple synchronization of your laser shows to the BPM of music.
Functionality
The RAW (DMX+ILDA) is a pure diode-based laser projector with a vibrant, balanced white output. Equipped with true analog modulation, it offers smooth fade-in and fade-out transitions for seamless visual effects.
Safety
We equip the RAW DMX+ILDA lasers with the very latest in laser safety features (including e-stop and interlock with manual reset, emission delay, mechanical shutter, and masking plate). Convenient external adjustments are also provided natively on the lasers.
What's in the box
